GS1900-10HP-EU0101F
GS1900-10HP-EU0101F

GS1900-10HP-EU0101F

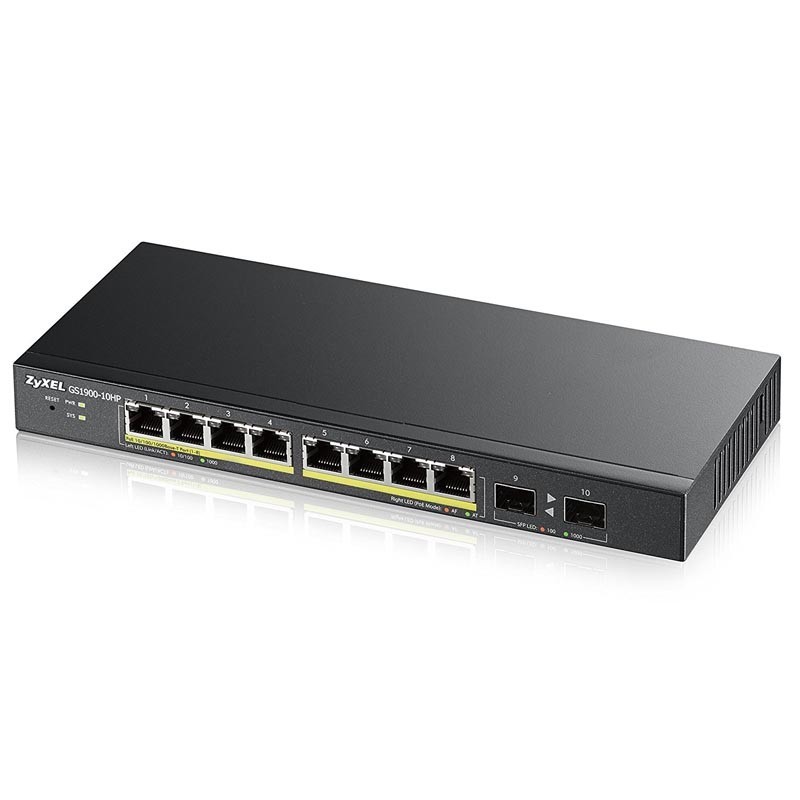

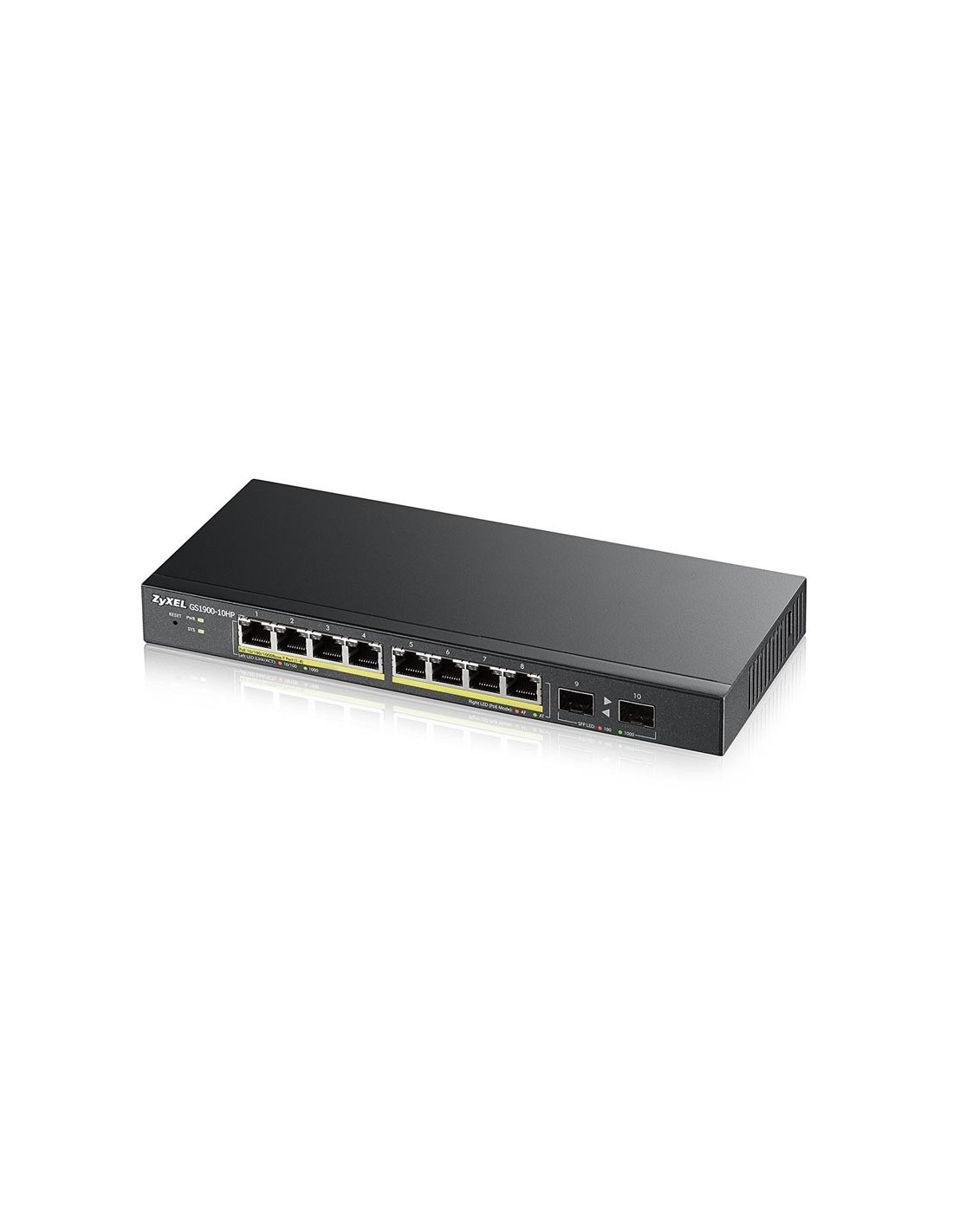

GS1900-10HP - Switch Web Managed 8 porte Gigabit PoE (erogazione PoE fino a 70W) +2 porte SFP Gigabit  - Supporto IPv6, VLAN - Design senza ventole, Desktopgabit PoE (erogazione PoE fino a 70W)  - Supporto IPv6, VLAN - Design senza ventole, Desktop



La serie Zyxel GS1900 di 8/10/16/24/48-port GbE Smart Managed Switch con velocità Gigabit e funzioni di gestione essenziali aumenta la flessibilità e la connettività della rete aziendale. Fornendo switch GbE con funzioni di risparmio energetico, design senza ventola e supporto IPv6 completo, la tua rete sarà pronta per future espansioni. Inoltre, lo switch Gigabit modello PoE GS1900-8HP/10HP/24HP/48HP è conforme allo standard IEEE 802.3at Power over Ethernet (PoE) Plus.

SPECIFICHE

Modelli desktop

Models
GS1900-8
GS1900-8HP
GS1900-10HP
GS1900-16
GS1900-24E
Port Density
10/100/1000BASE-T,fixed 8 - - 16 24
10/100/1000BASE-T, PoE, fixed - 8 8 - -
SFP 100/1000 Mbps - - 2 - -
Performance
Switching capacity (Gbps) 16 16 20 32 48
Forwarding rate (Mpps) 11.9 11.9 14.88 23.8 35.7
Packet buffer (byte) 525 K 525 K 525 K 525 K 525 K
MAC address table 8 K 8 K 8 K 8 K 8 K
Jumbo frame (byte) 9 K 9 K 9 K 9 K 9 K
Power
Input 100 - 240 V AC,50/60 Hz 100 - 240 V AC,50/60 Hz 100 - 240 V AC,50/60 Hz 100 - 240 V AC,50/60 Hz 100 - 240 V AC,50/60 Hz
Max. power consumption (watt) 6.2 84.3 96.2 10.5 15.1
PoE power budget (watt) - 70 77 - -
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
250 x 104 x 27/9.84 x 4.10 x 1.06
Weight (kg/lb.)
0.65/1.43		 Dimensions (WxDxH)(mm/in.)
250 x 104 x 27/9.84 x 4.10 x 1.06
Weight (kg/lb.)
0.71/1.57		 Dimensions (WxDxH)(mm/in.)
250 x 104 x 27/9.84 x 4.10 x 1.06
Weight (kg/lb.)
0.72/1.59		 Dimensions (WxDxH)(mm/in.)
216 x 133 x 42/8.50 x 5.23 x 1.65
Weight (kg/lb.)
0.97/2.13		 Dimensions (WxDxH)(mm/in.)
267 x 162 x 42/10.51 x 6.37 x 1.65
Weight (kg/lb.)
1.56/3.44
Packing Dimensions (WxDxH)(mm/in.)
302 x 227 x 64/11.89 x 8.94 x 2.52
Weight (kg/lb.)
1.04/2.30		 Dimensions (WxDxH)(mm/in.)
302 x 227 x 64/11.89 x 8.94 x 2.52
Weight (kg/lb.)
1.51/3.33		 Dimensions (WxDxH)(mm/in.)
302 x 227 x 64/11.89 x 8.94 x 2.52
Weight (kg/lb.)
1.53/3.37		 Dimensions (WxDxH)(mm/in.)
325 x 223 x 71/12.80 x 8.78 x 2.80
Weight (kg/lb.)
1.80/3.97		 Dimensions (WxDxH)(mm/in.)
325 x 223 x 71/12.80 x 8.78 x 2.80
Weight (kg/lb.)
2.05/4.52
Included accessories
  • Power adapter
  • Wall mount kit
  • Power cord
  • Power adapter
  • Wall mount kit
  • Power cord
  • Power adapter
  • Wall mount kit
  • Power cord
  • Wall mount kit
  • Rack mounting kit
  • Power cord
  • Wall mount kit
  • Rack mounting kit
Green Feature
Fanless Yes Yes Yes Yes Yes
Environmental Specifications
Operating temperature 0°C to 50°C (32°F to 122°F)
Storage temperature -40°C to 70°C (-40°F to 158°F)
Operating humidity 10% to 95%(non-condensing)
Storage humidity 10% to 95% (non-condensing)
MTBF (hr) 862,561 926,199 801,113 843,668 804,714
Heat dissipation (BTU/hr) 21.14 48.763 65.472 35.81 51.49
Acoustic noise (dBA) 0

Rack-mount Models

Models
GS1900-24
GS1900-24HP
GS1900-48
GS1900-48HP
Port Density
10/100/1000BASE-T,fixed 24 - 48 24
10/100/1000BASE-T, PoE, fixed - 24 - 24
SFP 100/1000 Mbps 2 2 2 2
Performance
Switching capacity (Gbps) 52 52 100 100
Forwarding rate (Mpps) 39 39 74 74
Packet buffer (byte) 525 K 525 K 1.5 M 1.5 M
MAC address table 8 K 8 K 8 K 8 K
Jumbo frame (byte) 9 K 9 K 9 K 9 K
Power
Input 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz
Max. power consumption (watt) 16 231 31.9 250
PoE power budget (watt) - 170 - 170
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
440 x 131 x 44/17.32 x 5.16 x 1.73
Weight (kg/lb.)
2.09/4.60		 Dimensions (WxDxH)(mm/in.)
440 x 310 x 45/17.32 x 12.20 x 1.77
Weight (kg/lb.)
4.03/8.88		 Dimensions (WxDxH)(mm/in.)
440 x 200 x 44/17.32 x 7.87 x 1.73
Weight (kg/lb.)
2.9/6.39		 Dimensions (WxDxH)(mm/in.)
440 x 310 x 45/17.32 x 12.20 x 1.77
Weight (kg/lb.)
4.24/9.35
Packing Dimensions (WxDxH)(mm/in.)
561 x 217 x 82/21.97 x 8.54 x 3.23
Weight (kg/lb.)
2.85/6.28		 Dimensions (WxDxH)(mm/in.)
583 x 451 x 98/22.95 x 17.76 x 3.86
Weight (kg/lb.)
5.1/11.24		 Dimensions (WxDxH)(mm/in.)
509 x 292 x 93/20.03 x 11.50 x 3.66
Weight (kg/lb.)
4.3/9.48		 Dimensions (WxDxH)(mm/in.)
583 x 451 x 98/22.95 x 17.76 x 3.86
Weight (kg/lb.)
5.31/11.70
Included accessories
  • Power cord
  • Rack mounting kit
  • Power cord
  • Rack mounting kit
  • Power cord
  • Rack mounting kit
  • Power cord
  • Rack mounting kit
Green Feature
Fanless Yes - - -
Environmental Specifications
Operating temperature 0°C to 50°C (32°F to 122°F)
Storage temperature -40°C to 70°C (-40°F to 158°F)
Operating humidity 10% to 95%(non-condensing)
Storage humidity 10% to 95% (non-condensing)
MTBF (hr) 432,673 318,142 229,313 175,767
Heat dissipation (BTU/hr) 55 787.71 108.77 853
Acoustic noise (dBA) 0 48.7 38.2 49.9
