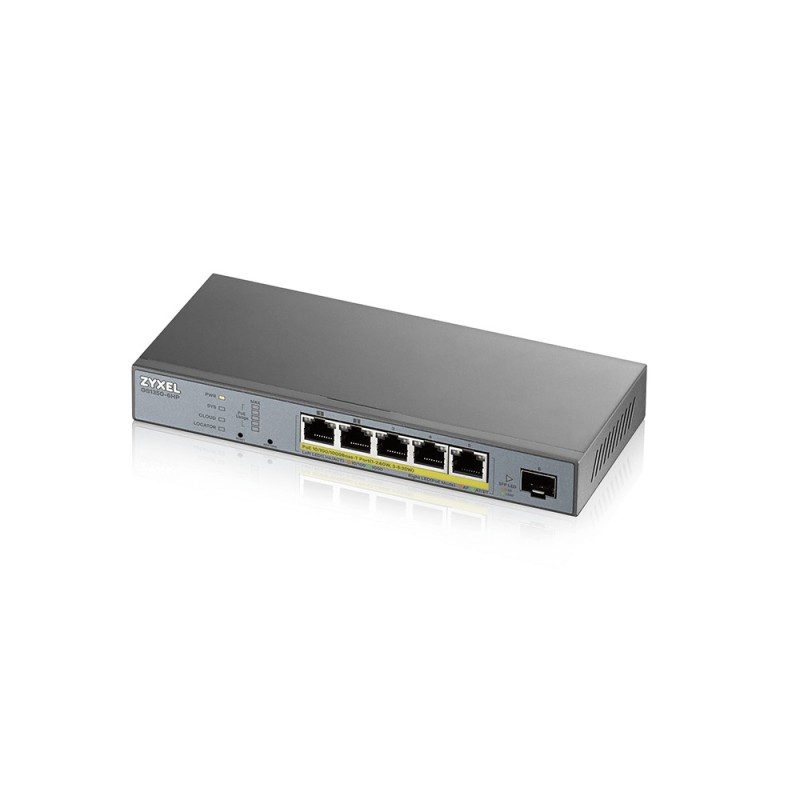

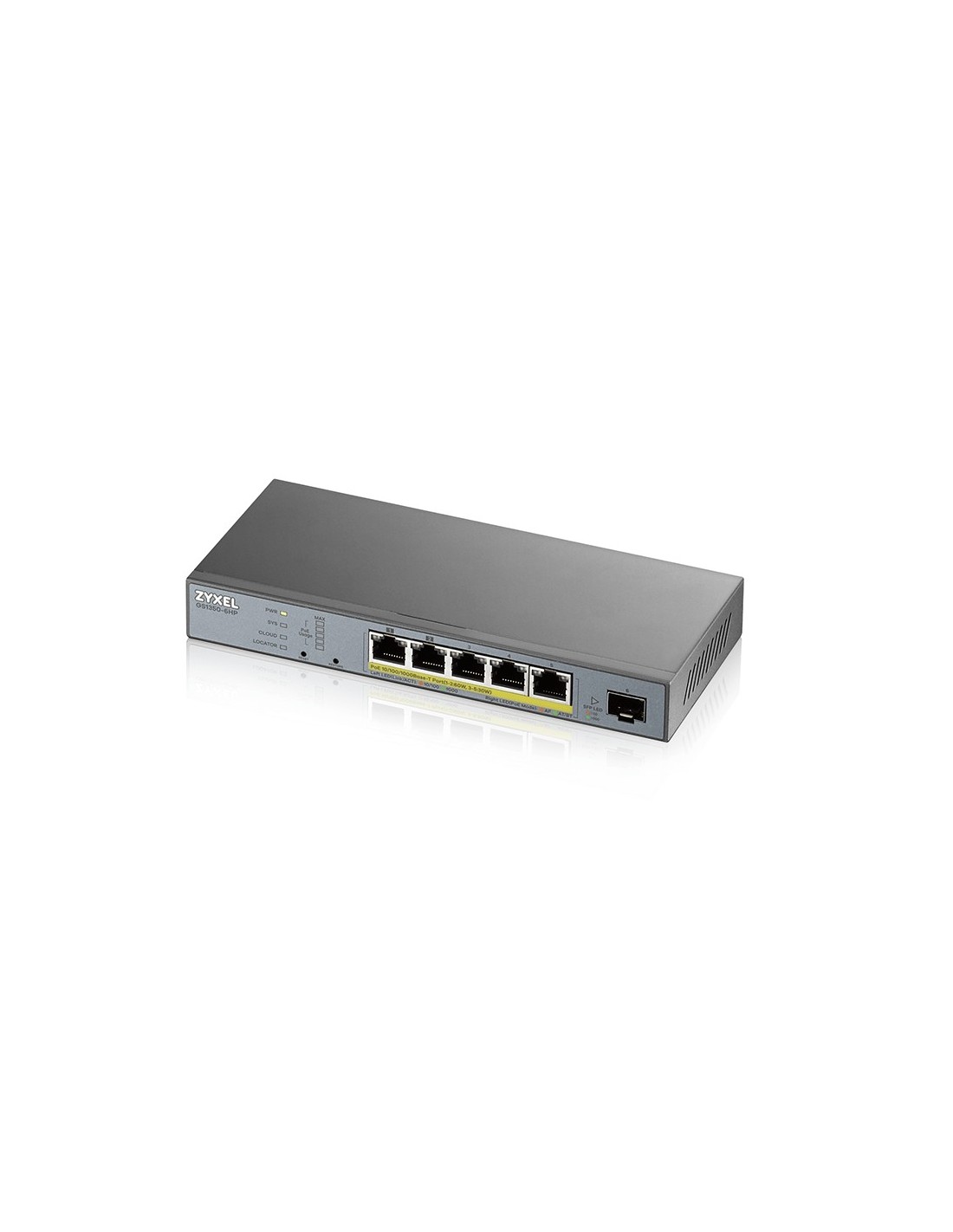

GS1350-6HP-EU0101F
Switch Managed per CCTV: 5 porte Gigabit PoE (Budget 60W) + 1 porta SFP
Perfetto per i deployment a lunga distanza
Tradizionalmente, lo switch PoE fornisce energia e dati entro una distanza di 100 metri. La serie GS1350 risponde all'esigenza di installare telecamere IP o dispositivi di alimentazione utilizzando il cavo Cat 5e esistente per i luoghi distanti. Abilitando l'extended-range mode, si ottengono istantaneamente distribuzioni distanti fino a 250 m.
Standard mode
Extended range mode
Budget ad alta potenza, design intuitivo del pannello frontale
La serie GS1350 include 4 modelli con ampia gamma di budget di potenza, fino a 375 W, per soddisfare i requisiti di alimentazione di più telecamere IP. L'intuitivo indicatore LED sul pannello anteriore consente di controllare lo stato PoE in tempo reale. Inoltre, il pulsante "Restore" consente il ripristino da errori di configurazione senza difficoltà.
Hardware unico, design robusto
Filtra i disturbi elettrici e le sovratensioni per garantire un'alimentazione stabile a PoE e al sistema.
Models
|
GS1350-6HP
|
GS1350-12HP
|
GS1350-18HP
|
GS1350-26HP
|
---|---|---|---|---|
Model | ||||
Product name | 5-port GbE Smart Managed PoE Switch with GbE Uplink | 8-port GbE Smart Managed PoE Switch with GbE Uplink | 16-port GbE Smart Managed PoE Switch with GbE Uplink | 24-port GbE Smart Managed PoE Switch with GbE Uplink |
Switch class | Smart Managed | Smart Managed | Smart Managed | Smart Managed |
Port Density | ||||
Total port count | 6 | 12 | 18 | 26 |
100/1000 Mbps | 5 | 10 | 16 | 24 |
Gigabit SFP | 1 | 2 | - | - |
Gigabit combo (RJ-45/SFP) | - | - | 2 | 2 |
Configurable extended range ports | 5 | 8 | 16 | 16 |
PoE | ||||
PoE ports | 5 | 8 | 16 | 24 |
Total PoE budget (watt) | 60 | 130 | 250 | 375 |
PoE Standard | 802.3af/at 802.3bt (port 1-2) |
802.3af/at | 802.3af/at | 802.3af/at |
Performance | ||||
Switching capacity (Gbps) | 12 | 24 | 36 | 52 |
Forwarding rate (Mpps) | 8.9 | 17.8 | 26.7 | 38.7 |
Packet buffer (byte) | 525 K | 525 K | 525 K | 525 K |
MAC address table | 8 K | 8 K | 8 K | 8 K |
Power | ||||
Input | 52 V - 57 V DC | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz |
Max. power consumption (watt) | 72 | 160.3 | 300.9 | 448.9 |
Physical Specifications | ||||
Dimensions (WxDxH)(mm/in.) | 193 x 84 x 26 / 7.6 x 3.31 x1.02 |
267 x 162 x 44 / 10.51x 6.38 x1.73 |
330 x 230 x 44 / 12.99 x 9.06 x1.73 |
441 x 270 x 44 / 17.36 x10.63 x 1.73 |
Weight (kg/lb.) | 0.41/0.9 | 1.63/3.59 | 2.42/5.34 | 3.58/7.89 |
Included accessories |
|
|
|
|
ESD/Surge Protections | ||||
Ethernet port surge protection | 4 KV | 4 KV | 4 KV | 4 KV |
Power supply surge protection: Line-GND | 4 KV | 4 KV | 4 KV | 4 KV |
Power supply surge protection: Line-Line | 2 KV | 2 KV | 2 KV | 2 KV |
Ethernet port ESD protection (air/contact) | 15 KV/8 KV | 15 KV/8 KV | 15 KV/8 KV | 15 KV/8 KV |
Environmental Specifications | ||||
Operating | Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing) |
Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing) |
Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing) |
Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing) |
Storage | Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing) |
Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing) |
Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing) |
Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing) |
MTBF (hr) | 2,021,885.87 | 1,065,025.45 | 1,699,692.18 | 888,495 |
Heat dissipation (BTU/hr) | 245.52 | 546.62 | 1,026.07 | 1,530.75 |
Acoustic noise @ 25°C (dBA) | 0 (Fanless) | 27.3 | 39 | 40.1 |
