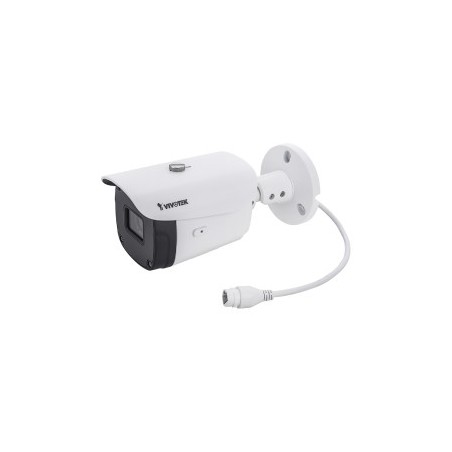

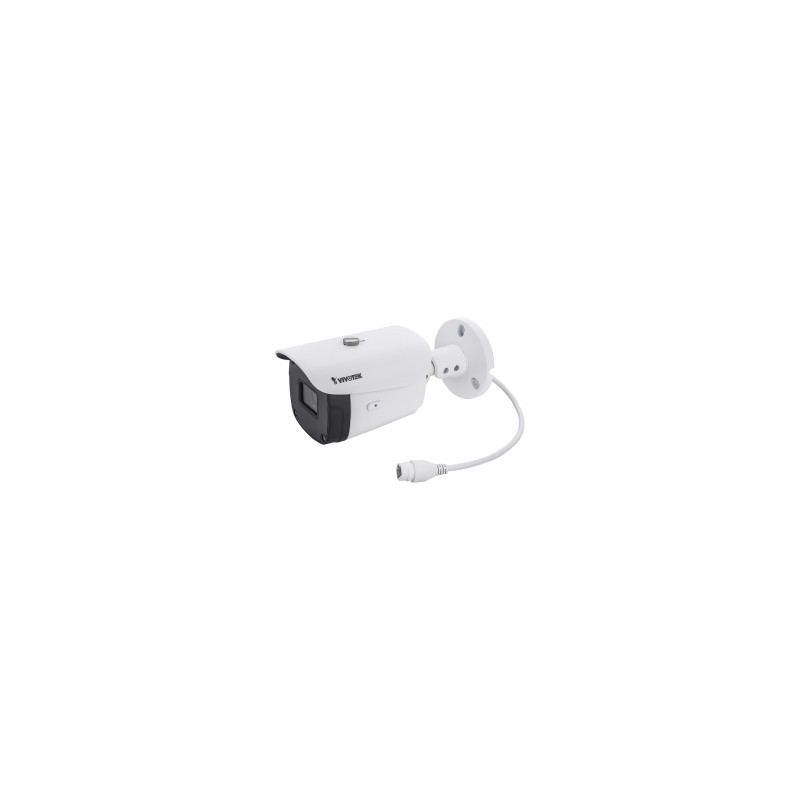

Vivotek IB9368-HT

System Information

Model

IB9368-HT

CPU

Multimedia SoC (System-on-Chip)

Flash

128MB

RAM

256MB

Camera Features

Image Sensor

1/2.9" Progressive CMOS

Max. Resolution

1920x1080 (2MP)

Lens Type

Motorized, Vari-focal, Remote Focus

Focal Length

f= 2.8 ~ 12 mm

Aperture

F1.4 ~ F2.8

Auto-iris

Fixed-iris

Field of View

32° ~ 93° (Horizontal)
18° ~ 50° (Vertical)
37° ~ 110° (Diagonal)

Shutter Time

1/5 sec. to 1/32,000 sec.

WDR Technology

WDR Pro

Day/Night

Yes

Removable IR-cut Filter

Yes

IR Illuminators

Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2

Minimum Illumination

0.055 Lux @ F1.4 (Color)
<0.005 Lux @ F1.4 (B/W)
0 Lux with IR illumination on

Tilt Range

90°

Rotation Range

180°

Pan/Tilt/Zoom Functionalities

ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

On-board Storage

Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording

Video

Video Compression

H.265, H.264, MJPEG

Maximum Frame Rate

30 fps @ 1920x1080

Maximum Streams

3 simultaneous streams

S/N Ratio

68 dB

Dynamic Range

120 dB

Video Streaming

Adjustable resolution, quality and bi trate, Smart Stream III

Image Settings

Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation

Network

Users

Live viewing for up to 10 clients

Protocols

802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP

Interface

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF

Supported, specification available at www.onvif.org

Solution Integration

Video Motion Detection

Five-window video motion detection

VADP Package

Trend Micro IoT Security, Stratocast, VIVOCloud

Alarm and Event

Alarm Triggers

Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, manual trigger, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)

Alarm Events

Event notification via email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card

General

Connectors

RJ-45 cable connector for 10/100Mpbs Network/PoE connection

LED Indicator

System power and status indicator

Power Input

IEEE 802.3af PoE Class 0

Power Consumption

Max. 12.95 W (IR on)
Max. 9 W (IR off)

Dimensions

85 x 85 x 214.5 mm

Weight

738 g

Casing

IP66, IK10(Housing)

Safety Certifications

CE, FCC Class B, UL, LVD, VCCI, C-Tick

Operating Temperature

Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)

Humidity

90%

Warranty

24 Months

System Requirements

Operating System

Microsoft Windows 8/7
Mac 10.12 (Chrome only)

Web Browser

Chrome 58.0 or above
Internet Explorer 10/11

Other Players

VLC: 1.1.11 or above
