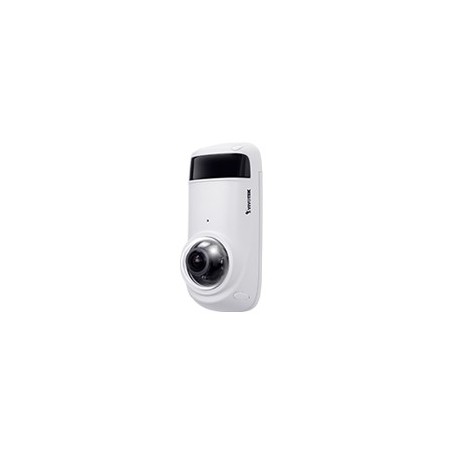

Vivotek CC9381-HV

System Information

Model

CC9381-HV

CPU

Multimedia SoC (System-on-Chip)

Flash

256MB

RAM

512MB

Camera Features

Image Sensor

1/2.7" Progressive CMOS

Max. Resolution

2560x1920 (5MP)

Lens Type

Fixed-focal

Focal Length

f = 1.45 mm

Aperture

F2.2

Auto-iris

Fixed-iris

Field of View

180° (Horizontal)
120° (Vertical)
180° (Diagonal)

Shutter Time

1/5 sec. to 1/32,000 sec.

WDR Technology

WDR Pro

Day/Night

Yes

Removable IR-cut Filter

Yes

IR Illuminators

Built-in IR illuminators, effective up to 15 meters with Smart IR

Minimum Illumination

0.11 Lux @ F2.2 (Color)
0.01 Lux @ F2.2 (B/W)
0 Lux with IR Illuminators on

Tilt Range

±25°

Pan/Tilt/Zoom Functionalities

ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

On-board Storage

Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording

Video

Video Compression

H.265, H.264, MJPEG

Maximum Frame Rate

H.265:
20 fps @ 2560x1920 (WDR On)
30 fps @ 2560x1920 (WDR Off)
H.264:
20 fps @ 2560x1920 (WDR On)
25 fps @ 2560x1920 (WDR Off)
MJPEG:
20 fps @ 2560x1920 (WDR On)
20 fps @ 2560x1920 (WDR Off)

Maximum Streams

3 simultaneous streams

S/N Ratio

62 dB

Dynamic Range

120 dB

Video Streaming

Adjustable resolution, quality and bit rate control, Smart Stream III

Image Settings

Time stamp, text overlay, flip and mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, defog, 3DNR, pixel calculator

Audio

Audio Capability

One-way Audio

Audio Compression

G.711, G.726

Audio Interface

Built-in microphone

Effective Range

5 meters

Network

Users

Live viewing for up to 10 clients

Protocols

802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP

Interface

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF

Supported, specification available at www.onvif.org

Solution Integration

Video Motion Detection

Five-window video motion detection

VADP Package

Trend Micro IoT Security

Alarm and Event

Alarm Triggers

Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event and quarantine event)

Alarm Events

Event notification via email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card

General

Connectors

RJ-45 cable connector for 10/100Mpbs Network/PoE connection

LED Indicator

System power and status indicator

Power Input

IEEE 802.3af PoE Class 0

Power Consumption

Max. 6.7 W

Dimensions

159.9 x 71.92 x 60.2 mm (Dome to rear panel), 39.2 mm (Flat to rear panel)

Weight

492 g

Casing

IP66, IK10

Safety Certifications

CE, LVD, FCC Class B, VCCI, C-Tick, UL

Operating Temperature

Starting Temperature: -10°C ~ 50°C (14°F~ 122°F)
Working Temperature: -20°C ~ 50°C (-4°F~ 122°F)

Humidity

90%

Warranty

24 months

System Requirements

Operating System

Microsoft Windows 8/7
Mac 10.12 (Chrome only)

Web Browser

Chrome 58.0 or above
Internet Explorer 10/11

Other Players

VLC: 1.1.11 or above
QuickTime: 7 or above

Included Accessories

Others

Quick installation guide, warranty card, mounting bracket, tilt bracket, screw pack
