Vivotek FD9165-HT
Dome Indoor Vivotek 1/2" Progressive CMOS, 2 Mpx 30fps @ 1920x1080 4 streams, varifocale 4 ~ 9 mm P-Iris, apertura 120°, H.265, IR 50 mt., WDR Pro II, 3DNR, Supreme Night Visibility, Poe, Onvif Profilo S/G, PIR, Remote Focus, Smart Stream III, microfono integrato
DESCRIZIONE

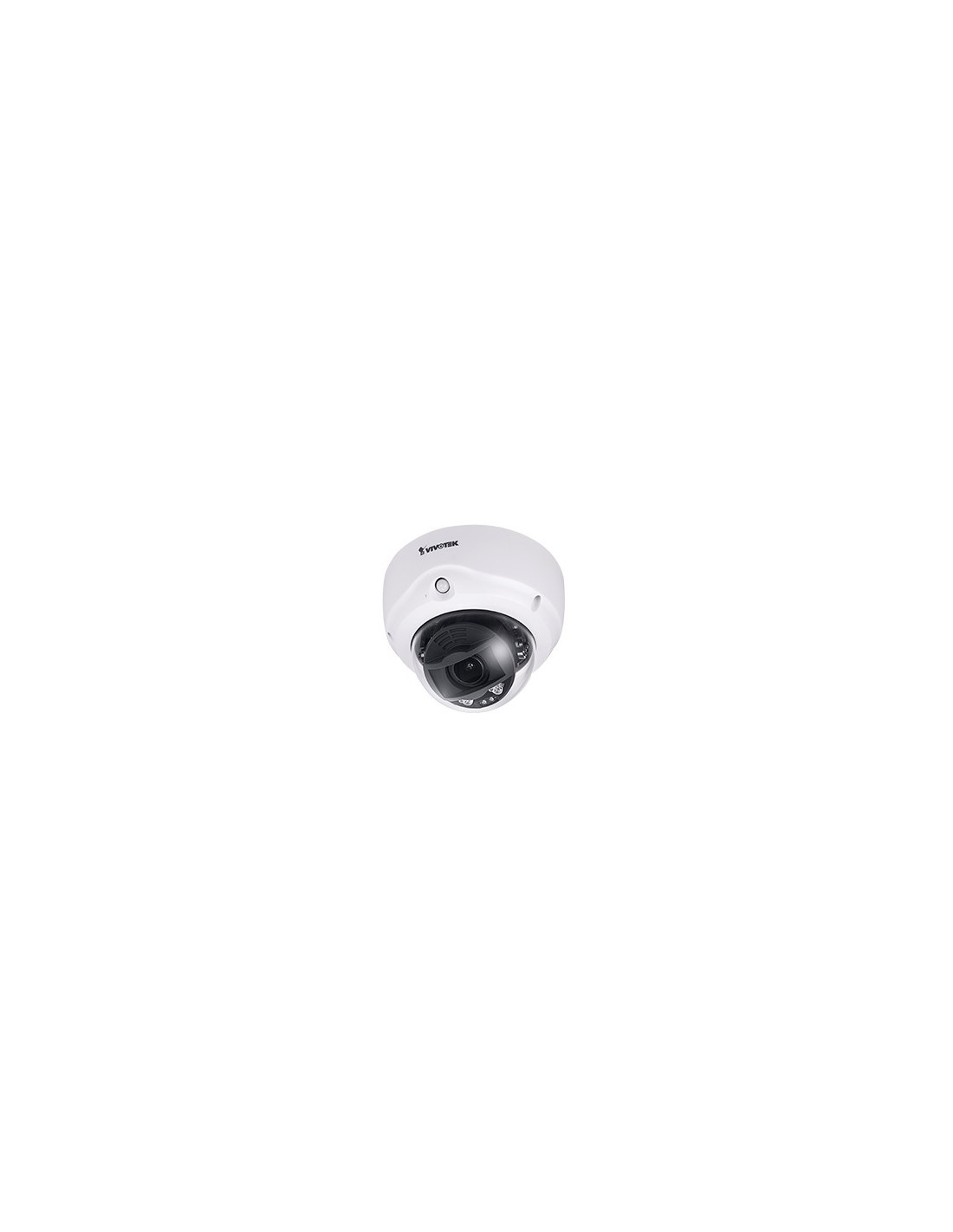

FD9165-HT è la nuova telecamera IP Dome indoor di VIVOTEK, dotata di un sensore Full HD con risoluzione 1920x1080 a 60 fps. Con la tecnologia VIVOTEK SNV e WDR Pro più aggiornata, l'FD9165-HT è in grado di catturare immagini di altissima qualità sia in condizioni di luce scarsa che di contrasto elevato.
L'FD9165-HT offre anche la migliore tecnologia di sorveglianza notturna. Adottando la tecnologia Smart IR II dai cupolini VIVOTEK, gli illuminatori IR FD9165-HT ora si allineano con l'angolo di messa a fuoco dell'obiettivo di messa a fuoco remoto per fornire la migliore qualità di immagine IR a qualsiasi impostazione dell'obiettivo. Questa funzione ottimizza l'intensità IR, riduce gli hotspot IR e aumenta il raggio d'azione IR fino a 50 metri.
Inoltre, FD9165-HT impiega la tecnologia Smart Stream III di VIVOTEK e il codec di compressione H.265, riducendo la larghezza di banda di oltre il 90% * pur mantenendo un'eccellente qualità dell'immagine rispetto al tradizionale H.264 senza streaming intelligente. Inoltre, VIVOTEK VADP (VIVOTEK Application Development Platform) consente agli utenti di aggiungere programmi personalizzati per varie applicazioni e scenari utente. L'FD9165-HT include anche un sensore PIR e un microfono incorporato, che consente di rilevare ulteriormente eventi imprevisti
SPECIFICHE TECNICHE
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 512MB |
| Camera Features | |
| Image Sensor | 1/2" Progressive CMOS |
| Max. Resolution | 1920x1080 |
| Lens Type | Vari-focal, Remote Focus |
| Focal Length | f = 4 ~ 9 mm f = 2.8 ~ 11.4 mm (equivalent focal length @1/2.8") |
| Aperture | F1.3 ~ 2.2 |
| Auto-iris | P-iris |
| Field of View | 46° ~ 120° (Horizontal) 26° ~ 60° (Vertical) 53° ~ 152° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro II |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.04 Lux @ F1.3 (Color), 50IRE 0.002 Lux @ F1.3 (Color), 30IRE 0 Lux with IR LED on |
| Pan Range | 353° |
| Tilt Range | 65° |
| Rotation Range | 180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in) |
| IR Illuminators | Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*5 |
| On-board Storage | Slot type: Micro SD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 60 fps @ 1920X1080 |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 66 dB |
| Dynamic Range | 140 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video Rotation, 3DNR, DIS, HLC |
| Audio | |
| Audio Capability | Two-way audio |
| Compression | G.711, G.726 |
| Interface | Built-in Mic External Mic input External line output |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS, NTCIP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card |
| General | |
| Connectors | RJ-45 cable connector for Network/PoE connection Audio line in Audio line out AC 24V DC 12V Digital input *2 Digital output *2 TV out |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V DC 12V IEEE 802.3af PoE Class 0 |
| Power Consumption | Max. 10.7 W |
| Dimensions | Ø 139 x 104 mm |
| Weight | 490 g |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick, UL |
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) |
| Humidity | 90% |
| Warranty | 36 Months |
| System Requirements | |
| Operating System | Microsoft Windows 7/8 |
| Web Browser | Mozilla Firefox 7~43 (streaming only) Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above Quicktime: 7 or above |
| Included Accessories | |
| Others | Quick installation guide, warranty card, screw pack, alignment sticker |
• AM-21A (L-Shape Bracket)
• AM-514(Adapting Plate)
