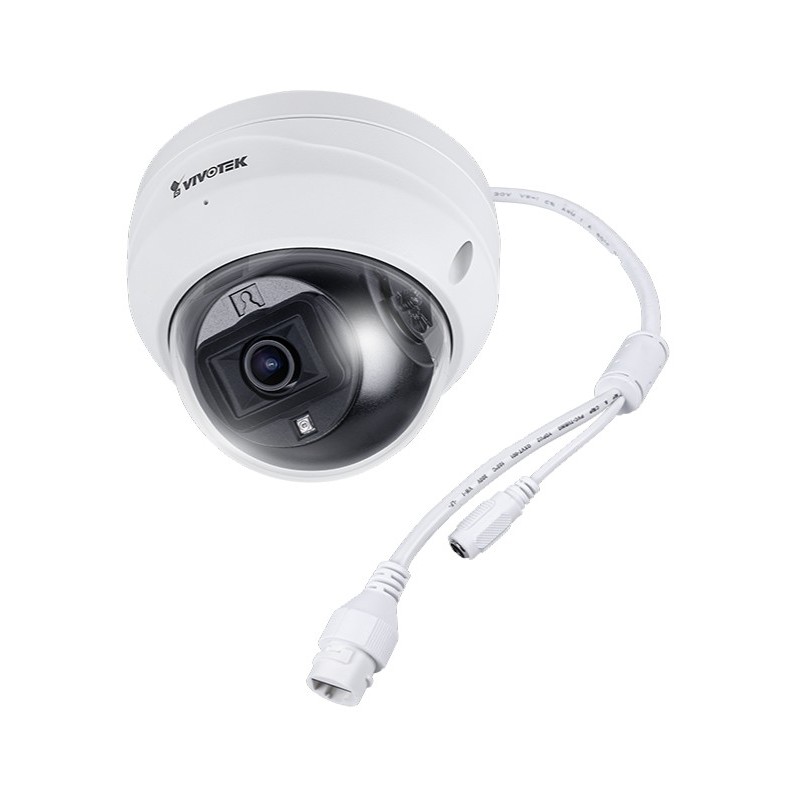

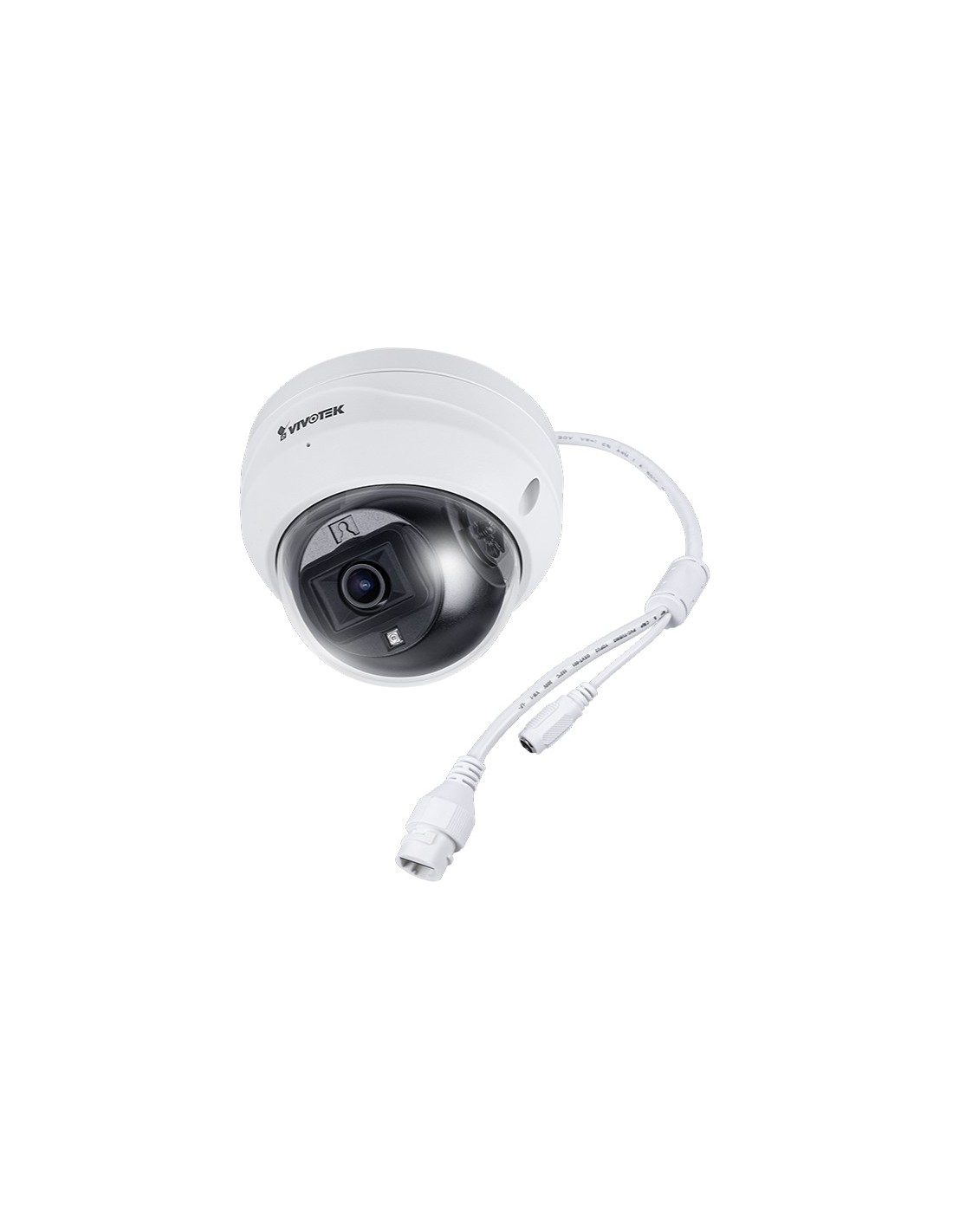

Vivotek FD9369

Camera Features

Image Sensor

1/3.1" Progressive CMOS

Max. Resolution

1920x1080 (2MP)

Lens Type

Fixed-focal

Focal Length

f = 2.8 mm

Aperture

F2.0

Iris Type

Fixed Iris

Field of View

116° (Horizontal)
65° (Vertical)
140° (Diagonal)

Shutter Time

1/5 sec. to 1/32,000 sec.

WDR Technology

WDR Enhanced

Day/Night

Yes

Removable IR-cut Filter

Yes

IR Illuminators

Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*1

Minimum Illumination

0.08 lux @ F2.0 (Color)
<0.005 lux @ F2.0 (B/W)
0 lux with IR illumination on

Pan Range

350°

Tilt Range

-10° ~ 75°

Rotation Range

No rotation, 2-axis design

Pan/Tilt/Zoom Functionalities

ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in)

Storage

Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)

Video

Video Compression

H.265, H.264, MJPEG

Maximum Frame Rate

30 fps @ 1920x1080

Maximum Streams

2 video streams (Up to 7 configurable profiles)

S/N Ratio

59 dB

Video Streaming

Adjustable resolution, quality and bit rate control, Smart Stream III

Image Settings

General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings; Pixel calculator

Audio

Audio Capability

One-way audio

Audio Compression

G.711, G.726

Audio Interface

Built-in microphone

Effective Range

5 meters

Network

Users

Live viewing for up to 10 clients

Security

Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, user access log, user account management

Protocols

802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

Interface

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF

Profile G, S, T supported, specification available at www.onvif.org

Solution Integration

Smart Motion Detection

Five-window video motion detection, people detection, time filter

VADP Package

Smart Motion Detection

Alarm and Event

Event Trigger

Audio detection, camera tampering detection, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot

Event Action

Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card

General

Connectors

RJ-45 cable connector for 10/100Mbps Network/PoE connection

LED Indicator

System power and status indicator

Power Input

IEEE 802.3af Class 0 PoE, DC 12V
(Simultaneous Power Redundancy Supported)

Power Consumption

PoE:
Max. 6.49W/4W (IR on/off)
DC 12V:
Max. 5.1W/3.4W (IR on/off)

Dimensions

Ø 110 x 85 mm

Weight

465 g

Certifications

EMC: CE (EN55032 Class B,EN55035), FCC (FCC Part 15 Subpart B Class B), ICES-003 issue 7,RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471,IEC/EN 60950-22); IA: BIS (IS 13252):BSMI;Environment: IK10 (IEC 62262), IP66 (IEC 60529)

Operating Temperature

Starting Temperature:
-30°C ~ 50°C (-22°F ~ 122°F)
Working Temperature:
-30°C ~ 55°C (-22°F ~ 131°F) (IR off)
-30°C ~ 50°C (-22°F ~ 122°F) (IR on)

Humidity

95% RH (non-condensing)

Warranty

36 months

System Requirements

Operating System

Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)

Web Browser

Chrome 58.0 or above
Internet Explorer 10/11

Other Players

VLC: 1.1.11 or above

Included Accessories

Packing Contents

Quick installation guide, alignment sticker, screw pack, cable gland, desiccant bag
