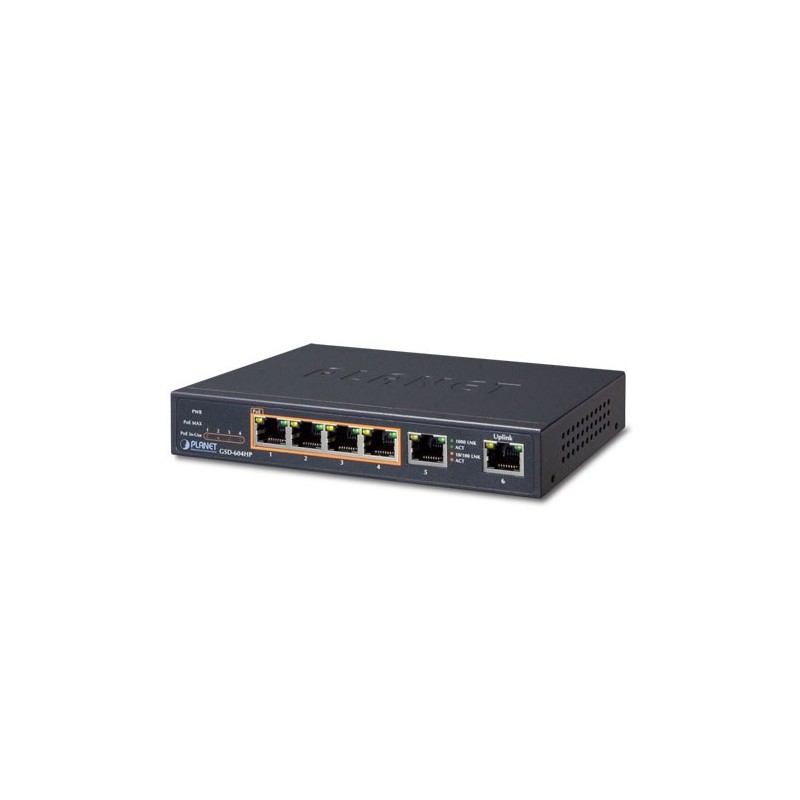

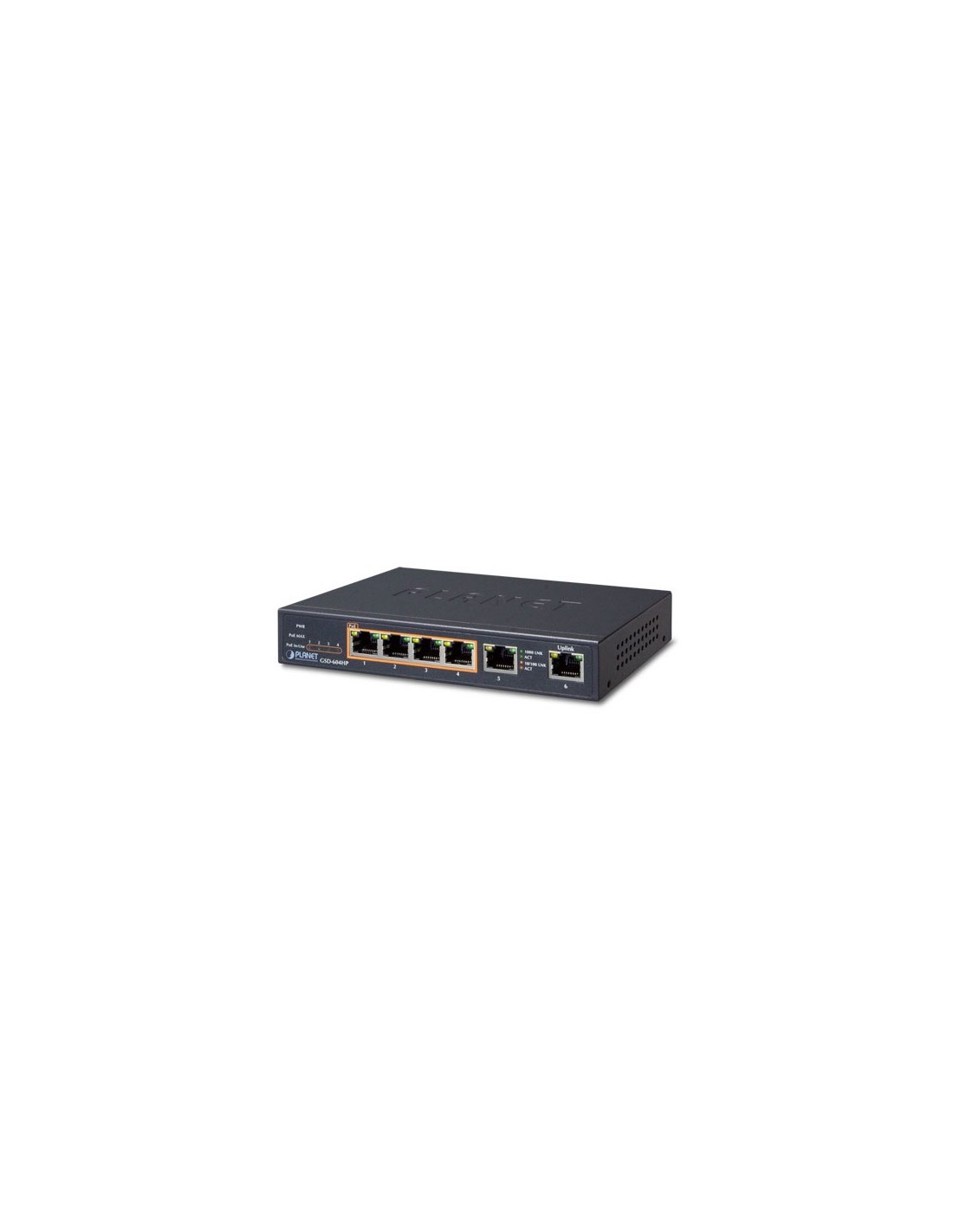

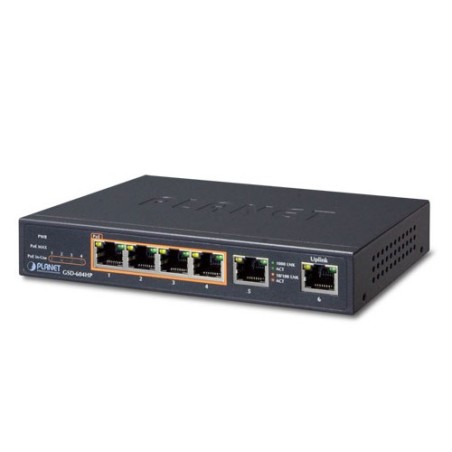

Planet GSD-604HP
Switch Planet Unmanaged 4 porte Poe+ 10/100/1000 at + 2 porte GE, Total PoE Power Budget 55W
DESCRIZIONE
PLANET GSD-604HP provides four 802.3at PoE+ ports for catering to small-scale IP surveillance networks at a lower total cost. With Dual 10/100/1000BASE-T uplink ports, the recorded HD video files from the 4 PoE IP cameras can be powered by the GSD-604HP and saved in the 4-channel NVR systems or surveillance software to perform comprehensive security monitoring and manage the surveillance system in the local LAN or the remote site via Internet
SPECIFICHE TECNICHE
• Interfaccia: 6 porte G Ethernet 10/100/1000Mbps, 4-port con funzione 802.3af/at PoE injector (dalla 1 alla 4)
• IEEE 802.3af Power over Ethernet/PSE; IEEE 802.3at Power over Ethernet Plus/PSE
• Totale Budget Poe: 55 watt
• Power Input: 55V DC, 1.1A
• Temperatura Operativa: 0~50 degree C
• Max Poe Power Output: Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
• Consumo totale: Max. 60 watts, 204.6 BTU
• Dimensioni: 160 x 92.5 x 28 mm
• Peso: 374g
• Temperatura Operativa: 0°C ~ 50°C (32°F ~ 122°F)
GARANZIA 36 MESI
