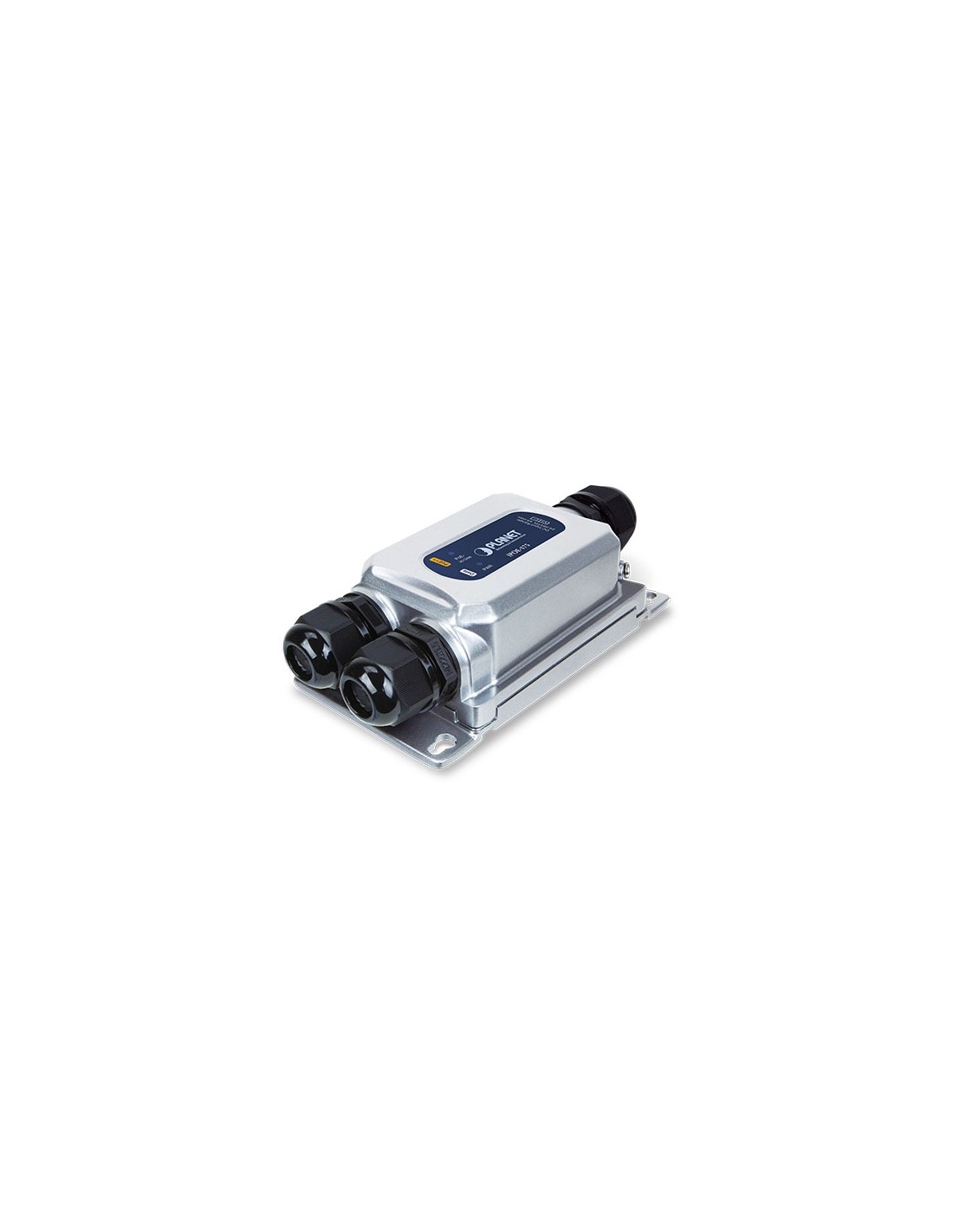

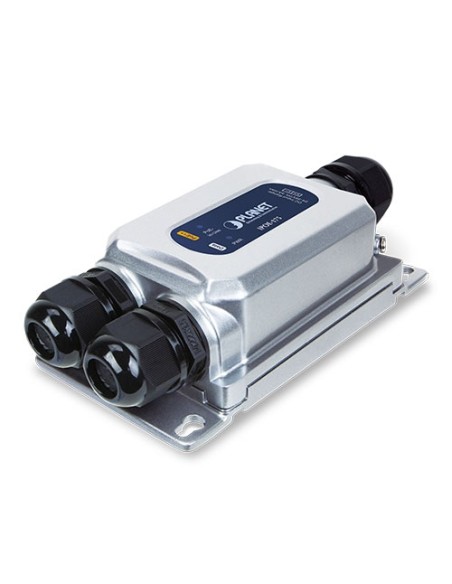

Planet IPOE-175 Industrial IP67-rated Single-port 802.3bt PoE ++ Injector provides a maximum of up to 60 watts for PoE output port, transmitting both the Gigabit Ethernet data and 802.3bt PoE power over the UTP cable. It is specifically designed for such powered devices (PDs) as PTZ network cameras, PTZ speed dome cameras, color touch-screen voice over IP (VoIP) telephones, multi-channel (11a/b/g/n) wireless LAN access points and other network devices that need a higher power to work stably.
SPECIFICHE
| Hardware Specifications | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Interface | [Input Port] 1 x 10/100/1000/2500BASE-T “Data” in RJ45 port [Output Port] 1 x 10/100/1000/2500BASE-T Ethernet with IEEE 802.3bt PoE++ “Data + DC” out RJ45 port [Input Power Terminal Block] 1 x 2-pin terminal block - Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-) |
||||||||||||
| Data Rate | 10/100/1000/2500Mbps | ||||||||||||
| LED Indicator | PWR (Green) PoE-in-use x 1 (Amber) |
||||||||||||
| Input Voltage | 24~56V DC | ||||||||||||
| Power Consumption |
|
||||||||||||
| ESD Protection | Air 8KV DC Contact 6KV DC |
||||||||||||
| Surge Protection | 6KV | ||||||||||||
| Enclosure | IP67-rated and IK10 aluminum metal case | ||||||||||||
| Installation | Wall-mount ear | ||||||||||||
| Dimensions (W x D x H) | 150 x 43.8 x 72.94 mm 169.85 x 43.8 x 72.94 mm, with cable gland |
||||||||||||
| Weight | 485g | ||||||||||||
| MTBF | >100,000 hours | ||||||||||||
| Network Cable | 10BASE-T: UTP category 3, 5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-T: UTP category 5e,6 cable(≤100m) 2500BASE-T: UTP category 5e, 6, 6A cable(≤100m) |
||||||||||||
| Power over Ethernet | |||||||||||||
| PoE Standard | IEEE 802.3bt PoE++ type 3 PSE Backward compatible with IEEE 802.3at PoE+ |
||||||||||||
| PoE Power Output | 802.3bt End-span/Mid-span |
||||||||||||
| PoE Power Supply Type | 55V DC Max. 60 watts to 802.3bt PoE++ PD Max. 30 watts to 802.3at PoE+ PD |
||||||||||||
| Power Pin Assignment | 802.3bt: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-) End-span: 1/2 (-), 3/6 (+) Mid-span: 4/5 (+), 7/8 (-) |
||||||||||||
| Standards Conformance | |||||||||||||
| Regulatory Compliance | FCC Part 15 Class A CE |
||||||||||||
| Stability Testing | IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) |
||||||||||||
| Standard Conformance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
||||||||||||
| Environment | |||||||||||||
| Operating Temperature | -40 ~ 75 degrees C | ||||||||||||
| Storage Temperature | -40 ~ 85 degrees C | ||||||||||||
| Humidity | 5 ~ 95% (non-condensing) | ||||||||||||
