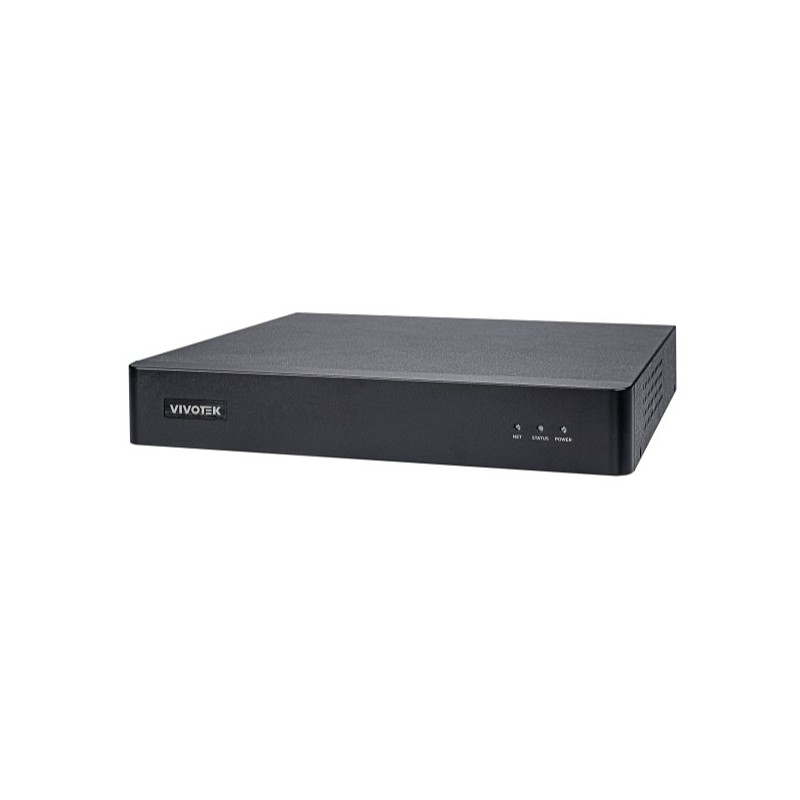

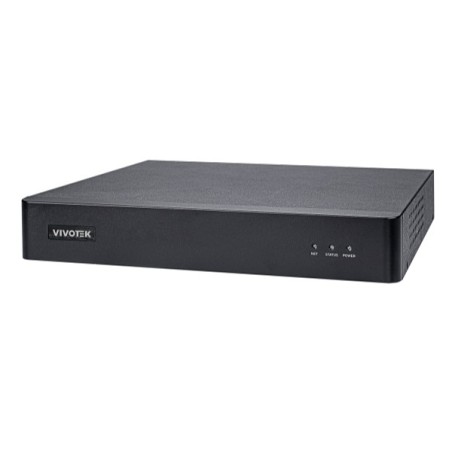

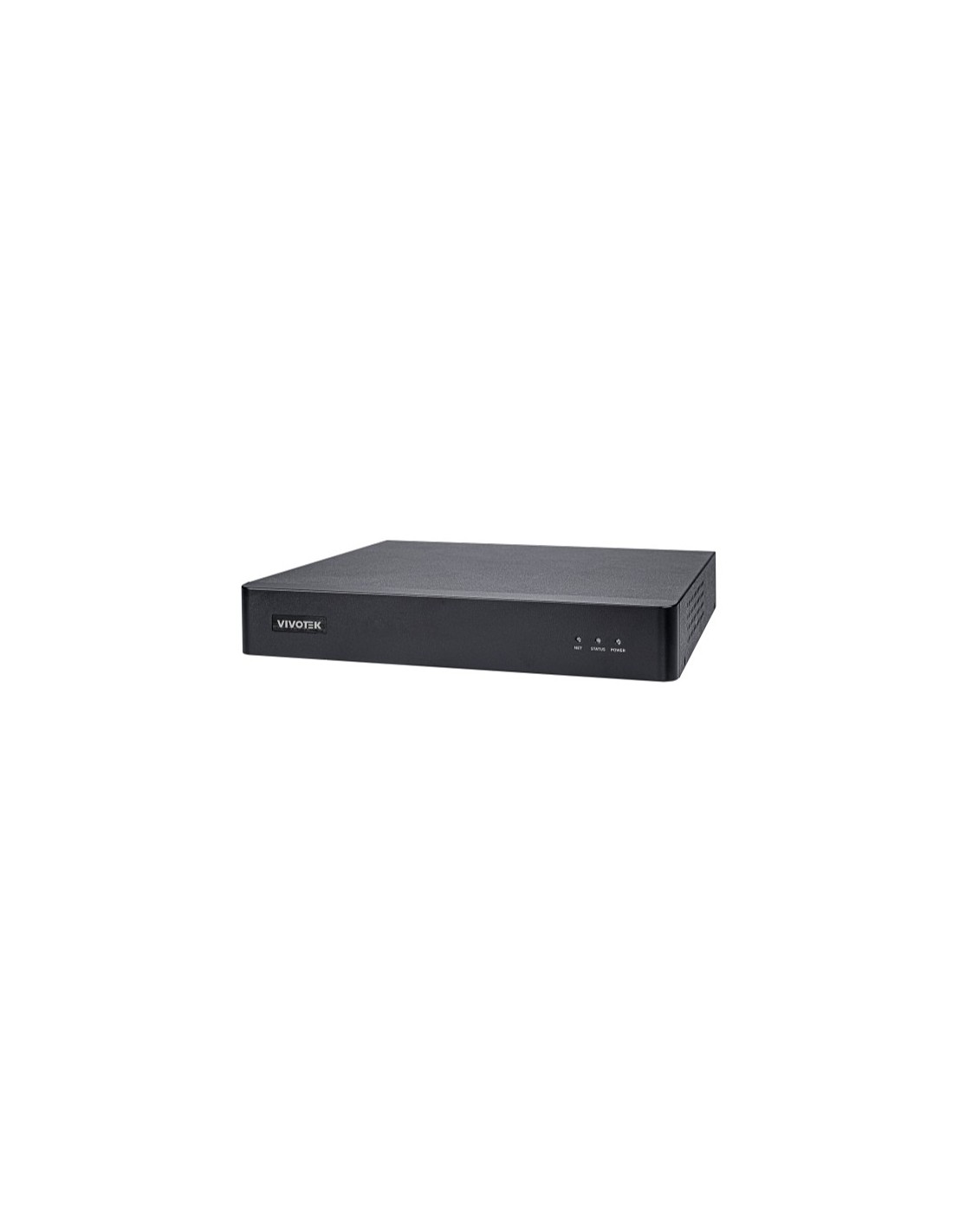

Vivotek ND9213P

Device

Model

ND9213P

OS

Embedded Linux

Watchdog

Hardware + Software

Power Restoration

System Restart Automatically after Power Recovery

Display

LiveView Display

4 Channels
Multi-layout display: 1x1, 2x2, 1P+3, 3V

Video Output

HDMI x1, VGA x1

Display Resolution

3840x2160, 1920x1080, 1280x720

Stream Application

ConstantAuto Stream

Fisheye Dewarp

Local: 1O, 1R, 1O3R, 1O8R
Web: 1O, 1R, 1P

PTZ Operation

Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control

Video

Video Format

H.265, H.264, MJPEG

Graphic Decoder

Hardware decoding

Decoding Resolution

Up to 3840x2160

Decoding Capability

3840x2160 @ 30 fps (1-CH)
1920x1080 @ 120 fps (4-CH)

Audio

Audio Format

G.711, G.726

Audio In/Out

3.5 Phone jack audio output x1
3.5 Phone jack audio input (reserved) x1

Record

Recording Time (sec.)

Pre-Record: 5 (Max. 10)
Post-Record: 20 (Max. 300)

Recording Stream

Single

Recording Throughput

64 Mbps

Recording Mode

Continuous, Schedule, Manual, Event

Recording Setting

Recycle (unit: Day)

Watermark

Supported

Storage & Backup

HDD Devices

Internal x1 (3.5")
*HDD is purchased by separately.

HDD Max. Capacity

*Please refer to recommended HDD list on the VIVOTEK website.

Disk Management

Create, Format and Remove Disk
HDD S.M.A.R.T.

External Storage

USB Storage (USB 3.0)

Video Clip Export

USB Dongle (FAT Format)

Schedule Backup

FTP

Playback

Playback Display

4 Channels
Multi-Layout Display: 1x1, 2x2, 1P+3, 1V+3

Playback Control

Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)

Video Search

By calendar, date/time, and alarm

Thumbnail Explorer (Storyboard)

Listing the thumbnail of recorded video (Max. 2-CH)

Snapshot

JPEG

Video Clip Export

EXE

Network

Ethernet

10/100Mbps Ethernet (RJ-45) x1

Network Throughput Input/Output Total

88 Mbps

PoE

802.3at/af compliant PoE ports x 4 (Total Max. 50 W)
* DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk.

PoE Management

Supported

Protocols

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter

External Interface

USB

Back: USB 3.0 x1, USB 2.0 x1

Alarm In

4

Alarm Out

2

Audio

3.5 Phone Jack Audio Output x1
3.5 Phone Jack Audio Input (Reserved) x1

System

Camera Integration

ONVIF Profile S

Event

Motion Detection, Smart VCA Event, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error

Event Action

Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMS, VIVOCloud APP Notification

User Management

User level: administrator, regular user

Log

System, recording, user, error

Date & Time

Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time

Language

Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic

Advanced Features

VCA Counting Solution

Supported

VCA Event Search

Supported

Trend Micro IoT Security

Supported

Cybersecurity Management

Supported

Crowd Control Solution

Supported

Remote Client

Software AP

Shepherd, VAST 2

Mobile/Tablet App

iViewer (Android & iOS)

Web Browser

Internet Explorer 10 (32 bit) or later/ Windows
Chrome v68.0.3 or later/ Windows for new web

VIVOCloud

Supported

General

Power Input

DC 48V/2A

Power Consumption

Max. 96 W

Dimensions

263.6 (W) x 247 (D) x 43.3 (H) mm

Weight

2.35 kg (without HDD)

Operating Temperature

0°C ~ 40°C (32°F ~ 104°F)

Humidity

0 ~ 95%

Safety Certifications

CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS

Warranty

36 months
