DESCRIZIONE

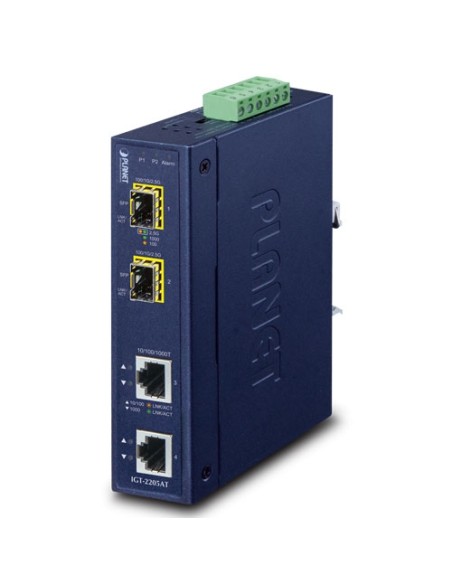

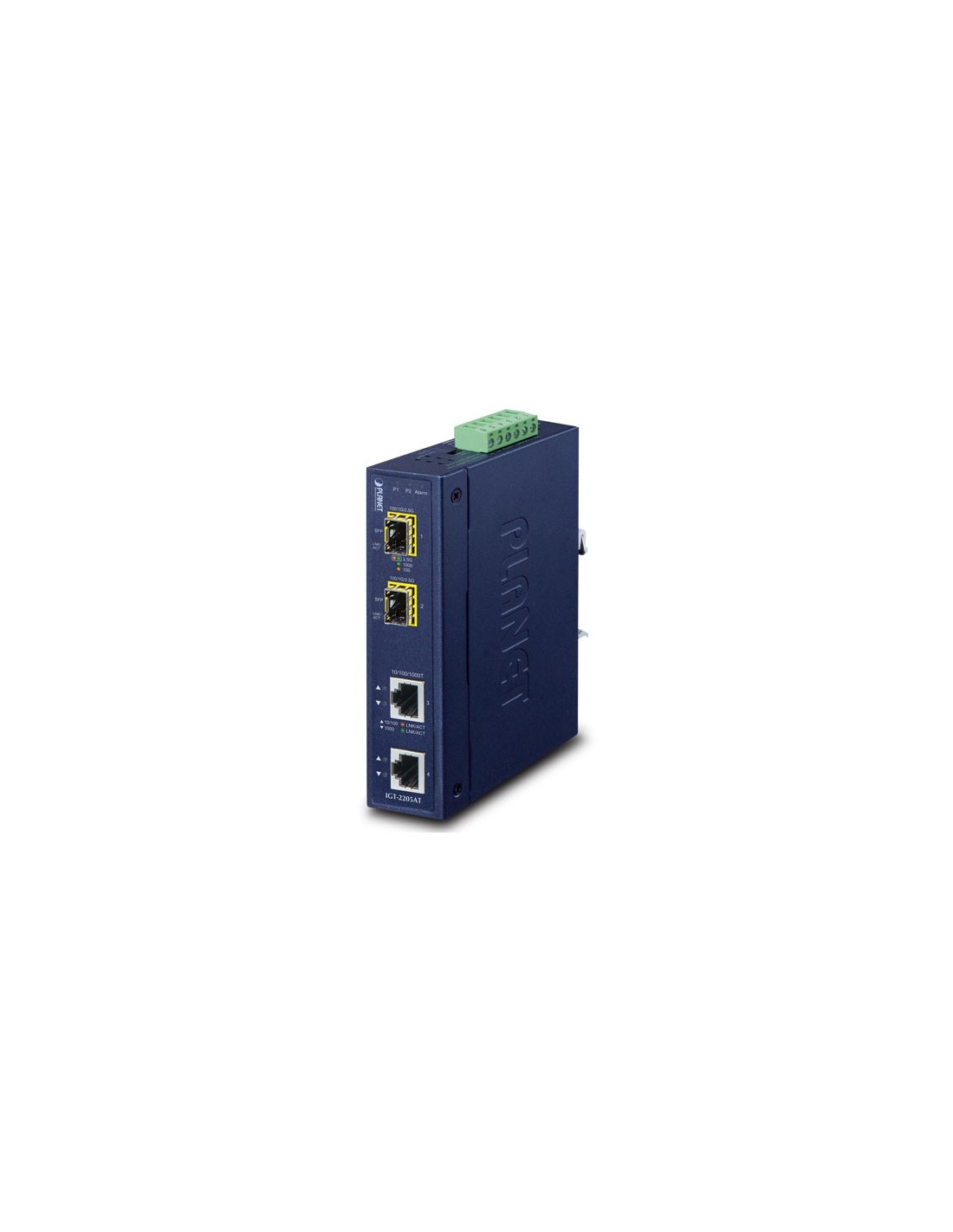

PLANET IGT-2205AT is an Industrial Gigabit Media Converter providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It is equipped with two 10/100/1000BASE-T RJ45 copper port and two 100/1000/2500BASE-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGT-2205AT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.
PLANET IGT-2205AT Industrial Gigabit Media Converter offers full port Gigabit speed. It provides very high reliability and security features to make sure the continuous operation in harsh environments such as control cabinet of transportation, factory, outdoors and places where extreme low or high temperatures can be experienced. Moreover, the IGT-2205AT is also compatible with 100/1000/2500Mbps SFP transceivers to provide a strong, stable and long-distance connection and flexible industrial networking deployment.
SPECIFICHE TECNICHE
| ardware Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Copper Interface | 2 x 10/100/1000BASE-T RJ45 | ||||||||
| Fiber Optic Interfaces | 2 x 100/1G/2.5GBASE-X SFP interfaces (Port-1 and Port-2) Supports auto detection |
||||||||
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
||||||||
| LED | System and Power: Green: DC Power 1 Green: DC Power 2 Red: Alarm Per Copper Port (Port-3~Port-4): Green: 1G LNK/ACT Amber:100 LNK/ACT SFP interface (Port-1~ Port-2) Green + Amber: 2.5G LNK/ACT Green: 1G LNK/ACT Amber:100 LNK/ACT |
||||||||
| DIP Switch |
|
||||||||
| Alarm | Provides one relay output for power failure Alarm Relay current carry ability: 1A @ DC 24V |
||||||||
| Power Requirements | DC 12~48V or AC 24V Redundant power with reverse polarity protection |
||||||||
| Power Consumption / Dissipation | 4.92 watts/16.9BTU | ||||||||
| Dimensions (W x D x H) | 32 x 87 x 135mm | ||||||||
| Weight | 419g | ||||||||
| Enclosure | IP30 type metal case | ||||||||
| Installation | DIN-rail kit and wall-mount ear | ||||||||
| ESD Protection | 6KV DC | ||||||||
| Converter Specifications | |||||||||
| Processing Scheme | Store-and-Forward | ||||||||
| Fabric | 14Gbps | ||||||||
| Throughput (packet per second) | 10.42Mpps@64bytes | ||||||||
| Flow Control | Back pressure for half duplex. IEEE 802.3x pause frame for full duplex |
||||||||
| Address Table | 4K entries | ||||||||
| Jumbo Frame | 9216bytes | ||||||||
| Standards Conformance | |||||||||
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.1p Class of Service |
||||||||
| Regulatory Compliance | FCC Part 15 Class A, CE | ||||||||
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27(shock) IEC60068-2-6 (vibration) |
||||||||
| Environment | |||||||||
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
||||||||
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
||||||||
GARANZIA 36 MESI
