DESCRIZIONE
Switch gestito perfetto da 10 Gbps su tutte le porte con commutazione e sicurezza Layer 3

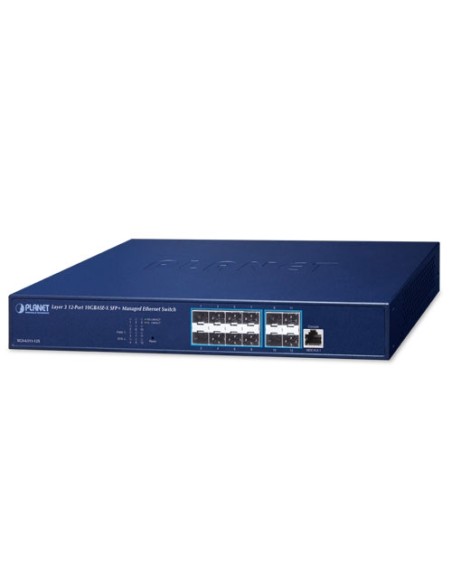

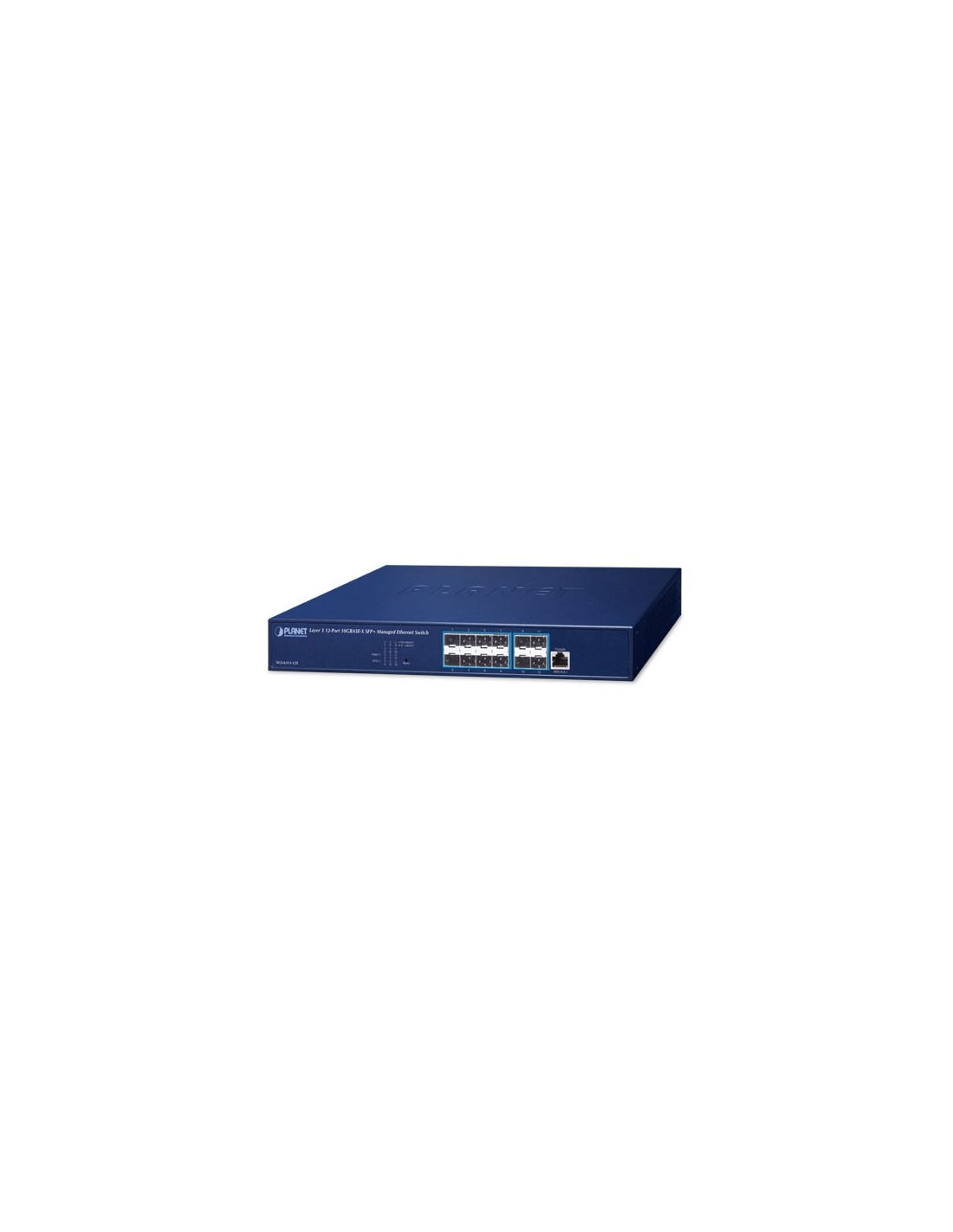

PLANET XGS-6311-12X è uno switch Ethernet da 10 Gbps all-port completamente gestito progettato per la richiesta di apparecchiature di rete richieste con larghezza di banda elevata, come AP wireless Wi-Fi 6/6E, NAS e workstation. È dotato di 12 porte in fibra 10GBASE-X SFP+ progettate in modo flessibile per estendere la distanza di connessione.
L'XGS-6311-12X fornisce prestazioni ad alta densità, routing statico Layer 3, RIP (Routing Information Protocol) e OSPF (Open Shortest Path First) con interfacce da 10 Gbps .
Con una capacità di collegamento dati così favorevole, prestazioni di routing Layer 3 basate su hardware, motore di commutazione Layer 2 e interfacce di gestione IPv6/IPv4 intuitive ma avanzate, aiuta ad accelerare l'implementazione della rete di prossima generazione ad alta larghezza di banda richiesta per la metropolitana , città intelligenti e imprese.
SPECIFICHE TECNICHE
| Hardware Specifications | |
|---|---|
| SFP+ Slots | 12 10GBASE-SR/LR SFP+ interfaces (port-1 to port-12) Compatible with 1000BASE-SX/LX/BX SFP transceiver |
| Console | 1 x RJ45-to-RS232 serial port (9600, 8, N, 1) |
| CPU | MIPS 800MHz |
| RAM | 512Mbytes |
| Flash Memory | 32Mbytes |
| Dimensions (W x D x H) | 330 x 230 x 43.6 mm, 1U height |
| Weight | 1988g |
| Power Consumption | Max. 16.4 watts/55.9 BTU (Power on without any connection) Max. 30.2 watts/102.9 BTU (Full loading) |
| Power Requirements | AC 100~240V, 50/60Hz |
| Fan | 2 |
| LED | System: PWR (Green), SYS (Green) Ports: 10G LNK/ACT (Green) 1G LNK/ACT (Amber) |
| Switching Specifications | |
| Switch Architecture | Store-and-forward |
| Switch Fabric | 240Gbps/non-blocking |
| Switch Throughput | 178.56Mpps |
| Address Table | 32K MAC address table with auto learning function |
| ARP Table | 8K |
| Routing Table | 12K |
| IP Interface | 1024 |
| ACL Table | 4K |
| Shared Data Buffer | 16MB |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Jumbo Frame | 12KB |
| IPv4 Layer 3 Functions | |
| IP Routing Protocol | Static route RIPv1/v2 OSPFv2 |
| Layer 3 Protocol | ARP ARP Proxy IGMP Proxy |
| IPv6 Layer 3 Functions | |
| Other | ICMPv6,ND,DNSv6 |
| Layer 2 Function | |
| Port Configuration | Port disable/enable Flow control disable/enable Bandwidth control on each port Port loopback detect |
| Port Status | Display each port’s speed duplex mode, link status, flow control status and auto negotiation status |
| VLAN | 802.1Q tagged based VLAN, up to 4K VLAN groups 802.1ad Q-in-Q (VLAN stacking) GVRP for VLAN management Private VLAN Edge (PVE) supported Protocol-based VLAN MAC-based VLAN IP subnet VLAN |
| Bandwidth Control | TX/RX/Both |
| Link Aggregation | IEEE 802.3ad LACP/static trunk Supports 64 groups with 8 ports per trunk group |
| QoS | 8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: IEEE 802.1p CoS/ToS IPv4/IPv6 DSCP Port-based WRR |
| Multicast | IPv4 IGMP v1/v2/v3 snooping IPv4 Querier mode support IPv6 MLD v1/v2 snooping Multicast VLAN Register (MVR) Up to 1024 |
| Security Function | |
| Access Control List | Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL Time-based ACL Up to 2K entries |
| Security | Port isolation Supports IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks Suppression of broadcast, multicast and unknown unicast packet DHCP Snooping, DHCP Option 82/43/60/61/67 Command line authority control based on user levels |
| AAA | TACACS+ and IPv4/IPv6 over RADIUS |
| Authentication | IEEE 802.1x port-based network access control |
| Management Function | |
| System Configuration | Console, Telnet, Web browser, SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMPv3 |
| Management | IPv4 and IPv6 dual stack management User IP security inspection for IPv4/IPv6 SNMP SNMP v1, v2c and v3 SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups IPv4/IPv6 FTP/TFTP IPv4/IPv6 NTP RADIUS authentication for IPv4/IPv6 Telnet user name and password IPv4/IPv6 SSH The right configuration for users to adopt RADIUS server’s shell management CLI, console, Telnet Security IP safety net management function: avoid unlawful landing at nonrestrictive area Syslog server for IPv4 and IPv6 TACACS+ PLANET Smart Discovery Utility |
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMP v2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMP v3 notify RFC 2574 SNMP v3 vacm RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB) RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB) |
| Standard Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1ag CFM IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2 ITU-T G.8032 ERPS Ring |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
