DESCRIZIONE
Potente soluzione di routing da 10 Gbps e Layer 3 per backbone aziendali e reti di data center

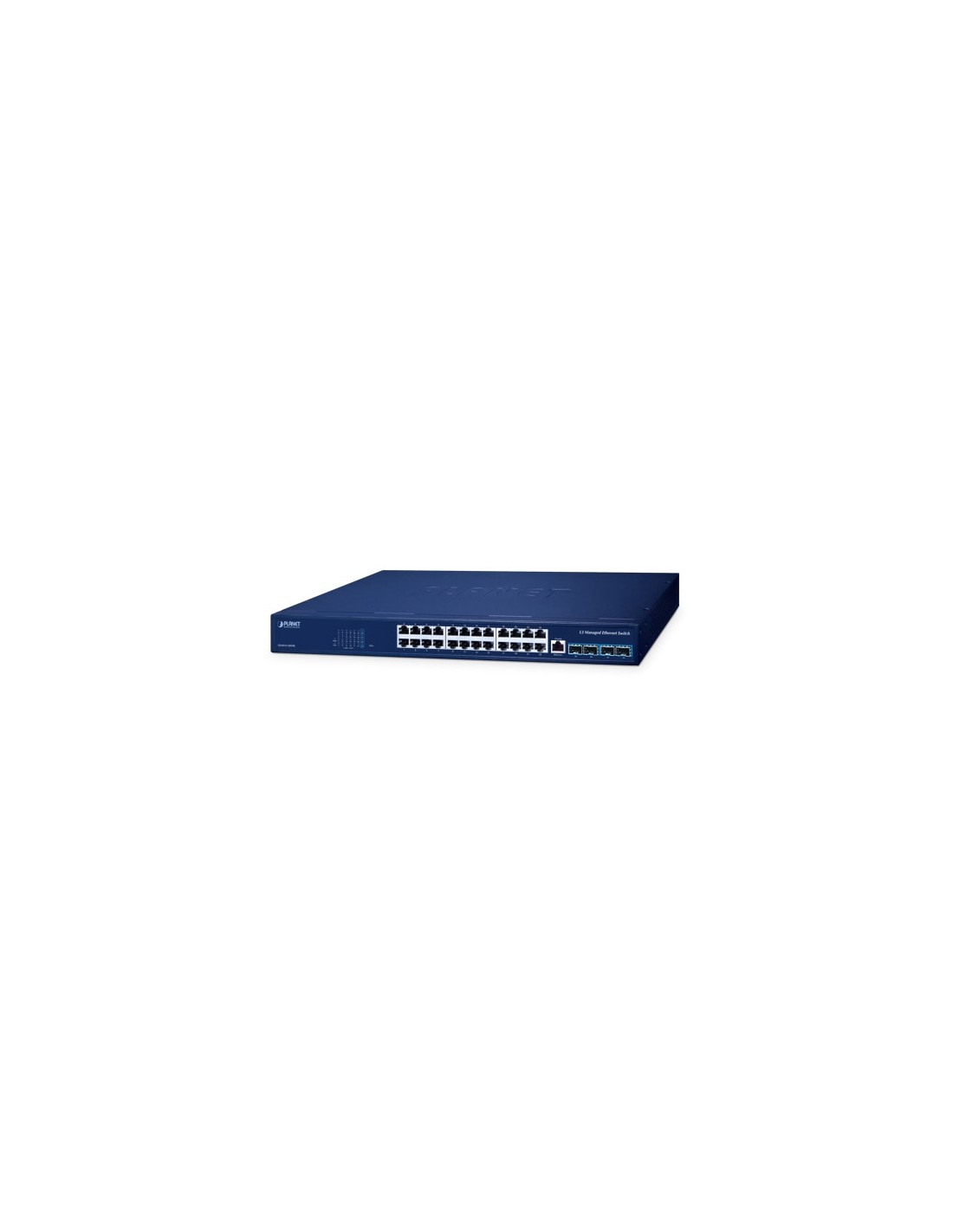

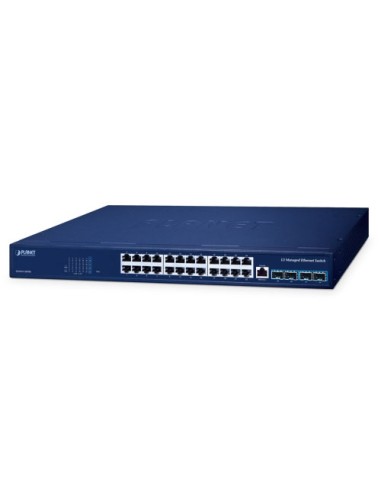

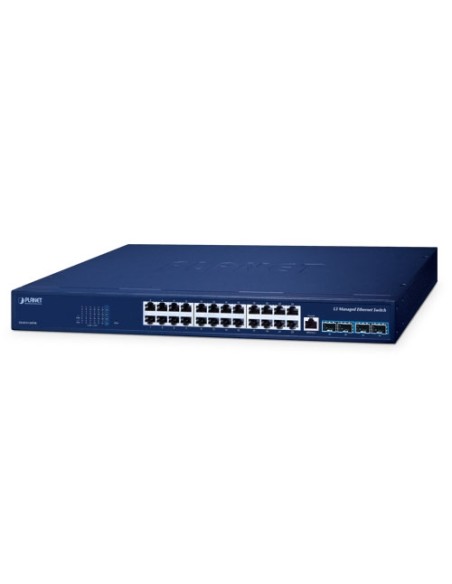

PLANET GS-6311-24T4X è un nuovissimo switch Gigabit gestito Layer 3 con capacità di uplink da 10 Gbps per vari tipi di applicazioni di rete e implementazione flessibile. Il GS-6311-24T4X è dotato di 24 porte in rame 10/100/1000BASE-T RJ45 e 4 porte 1G/10GBASE-X SFP+ con switch fabric da 128 Gbps fornite in un robusto case 1U con design senza ventola .
Capacità Ethernet da 10 Gbps ad alte prestazioni
Le quattro porte SFP+ integrate nel GS-6311-24T4X vantano un'architettura switch ad alte prestazioni in grado di fornire switch fabric non bloccante e throughput wire-speed fino a 128 Gbps , che semplifica notevolmente le attività di aggiornamento della LAN per soddisfare le crescenti richieste di larghezza di banda. Ciascuna delle porte SFP+ supporta Dual-Speed, 10GBASE-SR/LR o 1000BASE-SX/LX , il che significa che l'amministratore ora può scegliere in modo flessibile il ricetrasmettitore SFP/SFP+ adatto in base alla distanza di trasmissione o alla velocità di trasmissione richiesta per estendere la rete in modo efficiente .
Anello ridondante, ripristino rapido per applicazioni di rete critiche
Il GS-6311-24T4X supporta la tecnologia ad anello ridondante e presenta una capacità di ripristino automatico forte e rapida per prevenire interruzioni e intrusioni esterne. Incorpora la tecnologia avanzata ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) e il protocollo Spanning Tree (802.1s MSTP) nella rete del cliente per migliorare l'affidabilità del sistema e il tempo di attività in ambienti difficili. In una determinata rete ad anello semplice, il tempo di ripristino potrebbe essere inferiore a 50 ms per riportare rapidamente la rete al normale funzionamento.
Supporto del routing di livello 3
SPECIFICHE
| Hardware Specifications | |
|---|---|
| Copper Ports | 24 10/100/1000BASE-T RJ45 copper ports (ports 1 to 24) |
| 10G SFP+ Ports | 4 10GBASE-SR/LR SFP+ interfaces (ports 25 to 28) Backward compatible with 1000BASE-SX/LX/BX SFP transceiver |
| Console Port | 1 x RJ45-to-RS232 serial port (9600, 8, N, 1) |
| CPU | MIPS 800MHz |
| RAM | 512Mbytes |
| Flash Memory | 32Mbytes |
| Dimensions (W x D x H) | 440 x 207 x 44mm |
| Weight | 2742g |
| Power Consumption | 23.2 watts/79.11 BTU |
| Power Requirements- AC | AC 100~240V, 50/60Hz |
| Fan | －－ |
| LED | System: PWR (Green), SYS (Green) Ports: LNK/ACT (Green) |
| Switching Specifications | |
| Switch Architecture | Store-and-forward |
| Switch Fabric | 128Gbps/non-blocking |
| Switch Throughput | 95.23Mpps |
| Address Table | 16K MAC address table with auto learning function |
| ARP Table | 8K |
| Routing Table | 6K |
| IP Interface | 1024 |
| ACL Table | 2K |
| Shared Data Buffer | 12MB |
| Jumbo Frame | 12KBytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| IPv4 Layer 3 Functions | |
| IP Routing Protocol | Static route RIPv1/v2 OSPFv2 |
| Multicast Routing Protocol | IGMP v1/v2/v3 |
| Layer 3 Protocol | ARP ARP Proxy IGMP Proxy |
| IPv6 Layer 3 Functions | |
| Other | ICMPv6,ND,DNSv6 |
| Layer 2 Functions | |
| Port Configuration | Port disable/enable Flow control disable/enable Bandwidth control on each port Port loopback detect |
| Port Status | Display each port’s speed duplex mode, link status, flow control status and auto negotiation status |
| VLAN | 802.1Q tagged VLAN, up to 4K VLAN groups 802.1ad Q-in-Q (VLAN stacking) GVRP for VLAN management Private VLAN Edge (PVE) supported Protocol-based VLAN MAC-based VLAN IP subnet VLAN |
| Bandwidth Control | TX/RX/Both |
| Link Aggregation | IEEE 802.3ad LACP/static trunk Supports 64 groups with 8 ports per trunk group |
| QoS | 8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: IEEE 802.1p CoS/ToS IPv4/IPv6 DSCP Port-based WRR |
| Multicast | IPv4 IGMP v1/v2/v3 snooping IPv4 Querier mode support IPv6 MLD v1/v2 snooping Multicast VLAN Register (MVR) Up to 1024 |
| Security Functions | |
| Access Control List | Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL Time-based ACL Up to 2K entries |
| Security | Port isolation Supports IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks Suppression of broadcast, multicast and unknown unicast packet DHCP Snooping, DHCP Option 82/43/60/61/67 Command line authority control based on user levels |
| AAA | TACACS+ and IPv4/IPv6 over RADIUS |
| Authentication | IEEE 802.1x port-based network access control |
| Switch Management Functions | |
| System Configuration | Console, Telnet, Web browser, SNMP v1, v2c |
| Secure Management Intefaces | SSHv2, TLSv1.2, SNMPv3 |
| Management | IPv4 and IPv6 dual stack management User IP security inspection for IPv4/IPv6 SNMP SNMP v1, v2c and v3 SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups IPv4/IPv6 FTP/TFTP IPv4/IPv6 NTP RADIUS authentication for IPv4/IPv6 Telnet user name and password IPv4/IPv6 SSH The right configuration for users to adopt RADIUS server’s shell management CLI, console, Telnet Security IP safety net management function: avoid unlawful landing at nonrestrictive area Syslog server for IPv4 and IPv6 TACACS+ PLANET Smart Discovery Utility |
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMP v2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMP v3 notify RFC 2574 SNMP v3 vacm RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB) RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB) |
| Standard Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1ag CFM IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2 ITU-T G.8032 ERPS Ring |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
