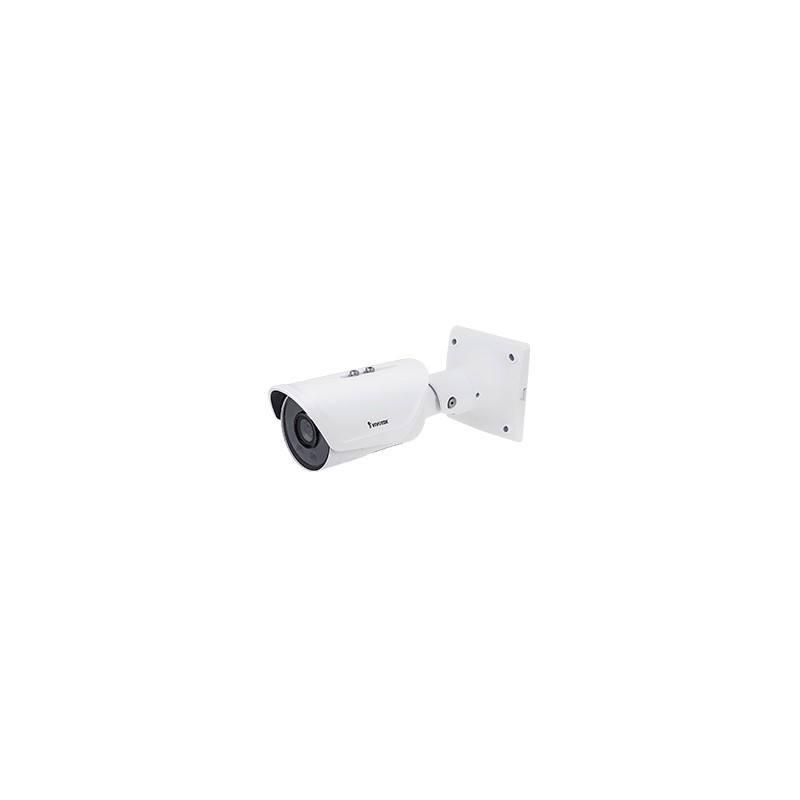

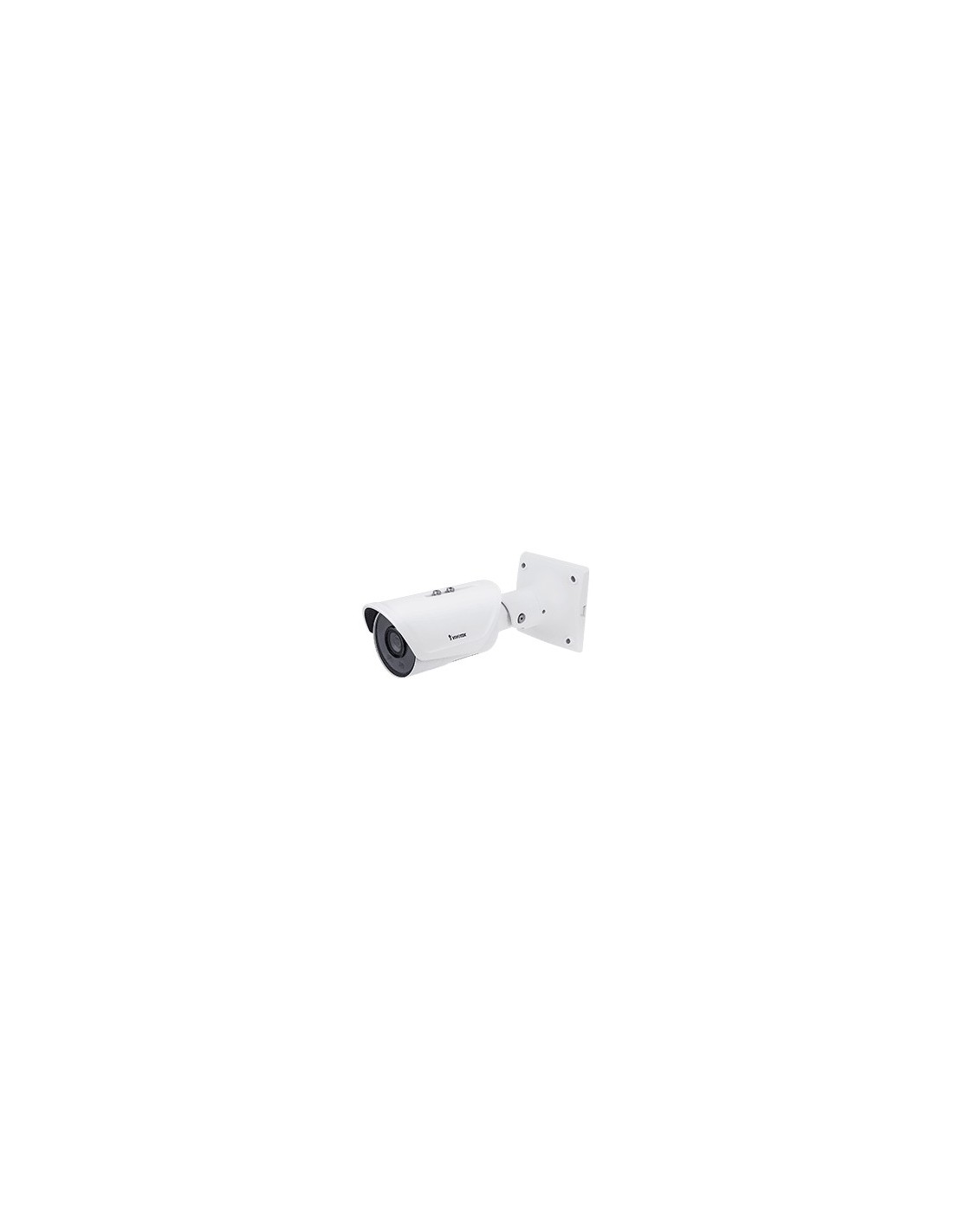

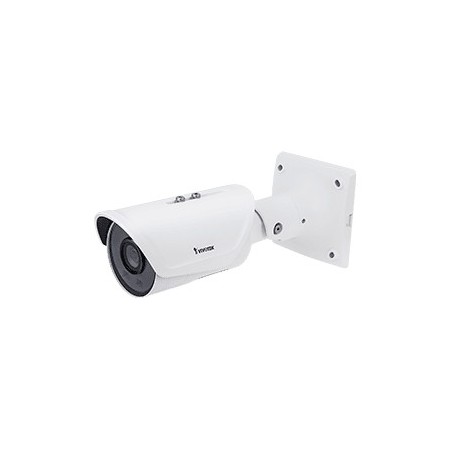

Vivotek IB9391-EHT

Camera Features

Image Sensor

1/2" Progressive CMOS

Max. Resolution

3840x2160 (4K/8MP)

Lens Type

Vari-focal, Remote Focus

Focal Length

f = 3.9 ~ 10 mm

Aperture

F1.5 ~ F2.7

Auto-iris

P-iris

Field of View

45° ~ 95° (Horizontal)
25° ~ 52° (Vertical)
52° ~ 111° (Diagonal)

Shutter Time

1/5 sec. to 1/32,000 sec.

WDR Technology

WDR Pro

Day/Night

Yes

Removable IR-cut Filter

Yes

Minimum Illumination

0.02 Lux @ F1.5 (Color)
0.01 Lux @ F1.5 (B/W)
0 Lux with IR illumination on

Pan/Tilt/Zoom Functionalities

ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

IR Illuminators

Built-in IR Illuminators up to 50 meters with Smart IR II

On-board Storage

Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording

Video

Video Compression

H.265, H.264, MJPEG

Maximum Frame Rate

30 fps @ 3840x2160 (WDR Pro on)
120 fps @ 1920x1080 (WDR Pro off)

Maximum Streams

3 simultaneous streams

S/N Ratio

60.5 dB

Dynamic Range

120 dB

Video Streaming

Adjustable resolution, quality and bit rate control, Smart Stream III

Image Settings

Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24), scheduled profile settings, defog, 3D noise reduction, video rotation, AE speed, DIS, HLC

Audio

Audio Capability

Two-way Audio (full duplex)

Audio Compression

G.711, G.726

Audio Interface

External microphone input
External line output

Network

Users

Live viewing for up to 10 clients

Protocols

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS/SSL

Interface

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF

Supported, specification available at www.onvif.org

Intelligent Video

Smart Motion Detection

Five-window video motion detection, human detection, time filter

Alarm Triggers

Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MicroSD card life expectancy

Alarm Events

Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card
File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

Connectors

RJ-45 cable connector for 10/100Mpbs Network/PoE connection
Audio input
Audio output
DC 12V power input
AC 24V power input
Digital input*1
Digital output*1

LED Indicator

System power and status indicator

Power Input

IEEE 802.3at PoE Class 4
AC 24V/DC 12V
Power redundancy

Power Consumption

Max. 25 W

Dimensions

121 x 121 x 394 mm (w/ junction box)
118 x 118 x 333 mm (w/o junction box)

Weight

2,235 g (w/ junction box)
1,755 g (w/o junction box)

Casing

IP66, IP67, IK10, NEMA 4X

Safety Certifications

CE, FCC Class A, VCCI, C-tick, UL

Operating Temperature

Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Working Temperature (IR off): -50°C ~ 60°C (-58°F ~ 140°F)
Working Temperature (IR on): -50°C ~ 50°C (-58°F ~ 122°F)

Humidity

0.9

Warranty

36 months
